631020

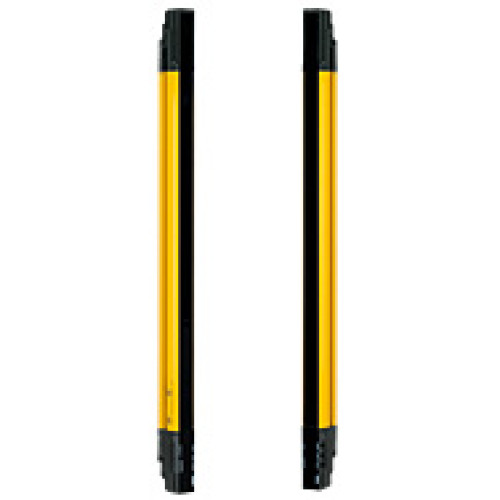

Safety light guard, Type 4, PL e hand protection (resolution 30 mm), protected field height 300 mm. Features: Muting, blanking, ca

Manufacturer's No: PSEN op4H-A-30-030/1     Manufacturer: Pilz
Safety light guard, Type 4, PL e hand protection (resolution 30 mm), protected field height 300 mm. Features: Muting, blanking, cascading, absence of dead zones. Programming is possible via Software

Availability Back Order

£1,855.06
  • Safety light guard Type 4 with PL e hand protection
  • Resolution of 30 mm, protected field height of 300 mm
  • Features muting, blanking, cascading, absence of dead zones
  • Programming possible via Software PSENoptConfigurator or directly on the light guard
  • Supply voltage of 24 V
  • Connection via 18-pin pigtail cable on M12 connector
  • Transmitter connector: 5-pin, receiver connector: 12-pin for blanking, 12-pin/5-pin for muting
  • Pigtail cables not included

Mandatory additional product



Product

Manufacturer Material ID -
PSEN op4H-A-30-030/1
Net Weight -
2.10kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
HU
UNSPSC -
41111926

Technical Specification

Width -
35 Millimetre
Model -
Transmitter and receiver separated
Height -
300 Millimetre
Length -
40.8 Millimetre
Number of semiconductor outputs with signalling function -
0
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of beams -
16
Type of switching output of the OSSD -
PNP/NPN
Type of electric connection -
Connector M12
Override possible -
Switching voltage of OSSD at state "high" -
24 Volt
Beam spacing -
30 Millimetre
With beam coding -
Wavelength of the sensor -
950 Nanometre
Ambient temperature -
0 Degrees celsius
Cascadable -
Degree of protection (IP rating) -
IP65
Fade-out possible -
Height of sensor -
306.3 Millimetre
Length of sensor -
40.8 Millimetre
Max. output current at protected output -
500 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
13 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
300 Millimetre
Scope of delivery of the one-way system -
Transmitter and receiver
Transmission range of the safety field -
20 Metre
Type of safety acc. IEC 61496-1 -
4
Voltage type -
DC
Width sensor -
35 Millimetre
With muting function -
Pilz

Availability Back Order

£1,855.06
