631106

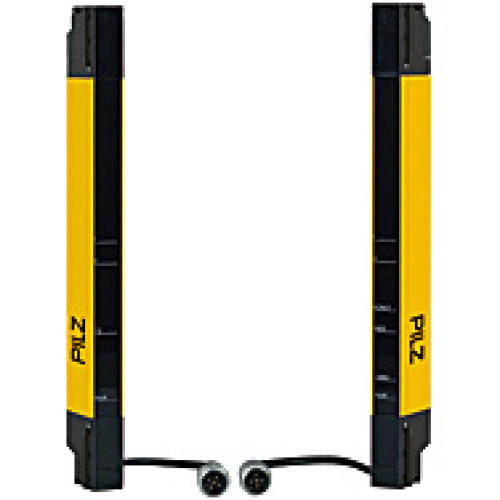

Safety light curtain, type 2 ,PL c, hand protection (resolution 24 mm) Protected field height 1050 mm, supply voltage 24 V, withou

Manufacturer's No: PSEN op2H-SL-24-105/1     Manufacturer: Pilz
Safety light curtain, type 2 ,PL c, hand protection (resolution 24 mm) Protected field height 1050 mm, supply voltage 24 V, without dead zone Connector: M12, sender: 5-pole, receiver 5-pole Connection

Availability Back Order

£1,430.22
  • Safety light guard Type 2 PL c
  • Hand protection with a resolution of 24 mm
  • Protected field height of 1050 mm
  • Cascading without dead zone
  • Slimline design
  • Supply voltage: 24 V
  • Connector type: M12
  • Transmitter: 5-pin
  • Receiver: 5-pin
  • Connection cable not included

Accessories



Product

Manufacturer Material ID -
PSEN op2H-SL-24-105/1
Net Weight -
2.20kg

Additional Product Information

Commodity Code -
90314990
Country of Origin -
HU
UNSPSC -
41111926

Technical Specification

Width -
15.4 Millimetre
Model -
Transmitter and receiver separated
Height -
1050 Millimetre
Length -
32.6 Millimetre
Number of semiconductor outputs with signalling function -
0
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Type of electric connection -
Connector M12
Switching voltage of OSSD at state "high" -
24 Volt
Beam spacing -
24 Millimetre
Wavelength of the sensor -
850 Nanometre
Ambient temperature -
0 Degrees celsius
Cascadable -
Degree of protection (IP rating) -
IP65
Height of sensor -
1050 Millimetre
Length of sensor -
32.6 Millimetre
Max. output current at protected output -
300 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
12 Millisecond
Resolution of the light curtain -
24 Millimetre
Safety field height -
1050 Millimetre
Scope of delivery of the one-way system -
Transmitter and receiver
Transmission range of the safety field -
5 Metre
Type of safety acc. IEC 61496-1 -
2
Voltage type -
DC
Width sensor -
15.4 Millimetre
Pilz

Availability Back Order

£1,430.22
