632026

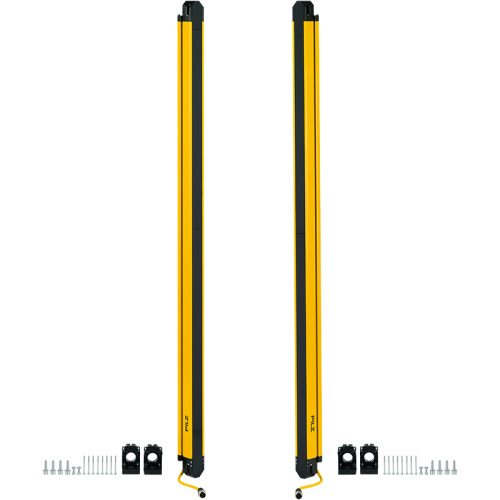

Safety light curtain, type 3, PL d, hand protection (resolution 30 mm) Protected field height 1050 mm, supply voltage 24 V, withou

Manufacturer's No: PSEN opII3H-s-30-105     Manufacturer: Pilz
Safety light curtain, type 3, PL d, hand protection (resolution 30 mm) Protected field height 1050 mm, supply voltage 24 V, without dead zone Connector: M12, sender: 5-pole, receiver 5-pole Connection

Availability Back Order

£1,418.27
  • Safety light guard Type 3 with PL d certification
  • Hand protection with a resolution of 30 mm
  • Protected field height of 1050 mm without dead zone
  • Supply voltage: 24 V
  • Connector type: M12
  • Transmitter: 5-pin, Receiver: 5-pin
  • Connection cable not included

Accessories



Product

Manufacturer Material ID -
PSEN opII3H-s-30-105
Net Weight -
3.04kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
UNSPSC -
43233603

Technical Specification

Width -
35 Millimetre
Model -
Transmitter and receiver separated
Height -
1050 Millimetre
Length -
40 Millimetre
Number of semiconductor outputs with signalling function -
0
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Type of electric connection -
Connector M12
Switching voltage of OSSD at state "high" -
24 Volt
Beam spacing -
30 Millimetre
Wavelength of the sensor -
850 Nanometre
Thumbnail of product picture -
Medien_800/Pictures_800/632026_800.jpg
Ambient temperature -
-25 Degrees celsius
Degree of protection (IP rating) -
IP65
Height of sensor -
1054 Millimetre
Length of sensor -
40 Millimetre
Max. output current at protected output -
100 Milliampere
Number of protected semiconductor outputs -
2
Reaction time -
9.1 Millisecond
Resolution of the light curtain -
30 Millimetre
Safety field height -
1050 Millimetre
Transmission range of the safety field -
18 Metre
Type of safety acc. IEC 61496-1 -
3
Voltage type -
DC
Width sensor -
35 Millimetre
With beam coding -
Pilz
