2CKA006512A0335

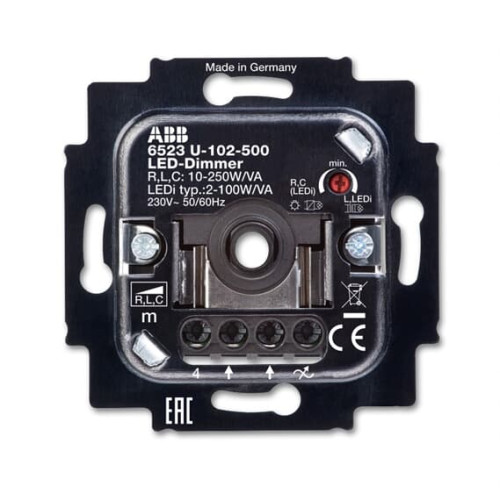

Dimmer Turn/push button 207 ... 253 V 2...250 V·A

Manufacturer's No: 6523U102500     Manufacturer: ABB
Dimmer Turn/push button 207 ... 253 V 2...250 V·A

Availability On Request

£101.74
  • Dimmer with turn/push button
  • Input voltage: 207V to 253V
  • Output voltage: 2V to 250V·A
  • Rotary control with two-way switch and soft-catch feature
  • 2-wire connection (neutral conductor not required)
  • Optimized for dimming retrofit LED lamps (LEDi)
  • Compatible with incandescent lamps, tungsten halogen lamps, low-voltage halogen lamps, and dimmable energy-saving halogen lamps
  • Mix operation of LEDi with conventional loads possible
  • Adjustable between leading edge control and trailing edge control
  • Low noise level due to MOSFET transistors

Read more

  • Electronic short-circuit and overload protection
  • Adjustable minimum brightness
  • Rated voltage: 230V~, ±10%
  • Rated frequency: 50Hz/60Hz
  • Nominal power: 2W to 100W/VA (retrofit LED loads), 10W to 250W/VA (non-LED loads)


Product

Manufacturer Material ID -
6523U102500
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

RAL-number (akin) -
-
Impact strength -
UN
Colour -
Black
Material quality -
Thermoplastic
Type of fastening -
Mounting with claw and screw
Light value memory -
Substation input -
Nominal power -
2 Voltampere
Surface finishing -
Matt
Suitable for degree of protection (IP) -
IP20
Assembly arrangement -
Basic unit
Frequency -
50 Hertz
Control voltage -
220 Volt
Assembly -
Basic unit
Connection type -
Screwed terminal
Degree of protection (IP rating) -
IP20
Depth of device -
54 Millimetre
Height of device -
71 Millimetre
Impact resistance (IK rating) -
IK00
Material -
Plastic
Material qualifier -
Thermoplastic
Max. switching power LED -
250 Watt
Method of operation -
Turn/push button
Minimum depth of back box -
32 Millimetre
Mounting method -
Flush mounted
Nominal voltage -
230 Volt
Surface finish -
Matt
Surface protection -
Untreated
Type of load -
Universal and LED Retrofit
Width of device -
71 Millimetre
ABB

Availability On Request

£101.74
