2CKA006800A2767

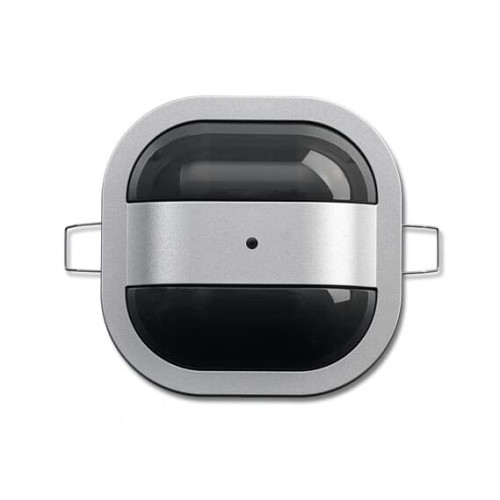

Presence Detector 8 m 2300 W aluminium silver

Manufacturer's No: 6819/60-183-500     Manufacturer: ABB
Presence Detector 8 m 2300 W aluminium silver

Availability On Request

£182.07
  • Presence detector for lighting systems
  • Master presence detector with mixed light measurement
  • Detection range: up to Ø 8m for walking persons
  • Suitable for semiautomatic and fully automatic operation
  • Additional activation/deactivation through pushbutton input
  • Continuous light/continuous off function with 8-hour timer
  • Teach-in function for brightness switching threshold
  • Ceiling installation with integrated spring bracket
  • Twist protection with quick tensioning
  • Surveillance density: 48 sectors with 496 switching segments

Read more

  • Switch-off delay: adjustable from 1 min. to 30 min. or short-time pulse
  • Remote control via IR service remote control 6843
  • Suitable for false ceilings with board thickness from 9 to 25 mm
  • Hole size: Ø 68 mm


Product

Manufacturer Material ID -
6819/60-183-500
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Connection type -
Screwless terminal
Diameter reach on floor -
8 Metre
Max. reach sideways -
4 Metre
Max. switching power -
2300 Watt
Min. switch-on time -
60 Second
Minimum depth of back box -
49 Millimetre
Model -
Presence detector
Mounting method -
Other
Networkable -
Nominal voltage -
230 Volt
Number of switching zones -
496
Optimum mounting height -
2 Metre
Pivoting range sensor, horizontal -
0 Degrees
Pivoting range sensor, vertical -
0 Degrees
RAL-number (similar) -
9006
Recess depth -
49 Millimetre
Recess diameter -
68 Millimetre
Remote operation -
Response value luminosity -
5 Lux
Response value luminosity adjustable -
Sensor type -
Passive infrared
Staircase monitoring -
Suitable for ceiling mounting -
Surface finish -
Matt
Surface protection -
Lacquered
Temperature -
-5 Degrees celsius
Voltage type -
AC
Width -
94 Millimetre
Auxiliary input -
Colour -
Aluminium
Creep-under protection -
Degree of protection (IP rating) -
IP40
Depth -
72 Millimetre
Detection angle horizontal -
90 Degrees
Forced switch off -
Forced switch on -
Frequency -
50 Hertz
Halogen free -
Height -
94 Millimetre
Material -
Plastic
Material qualifier -
Thermoplastic
Max. duty cycle -
30 Minute
Max. reach frontally -
4 Metre
ABB

Availability On Request

£182.07
