6AG11240XC024AX0

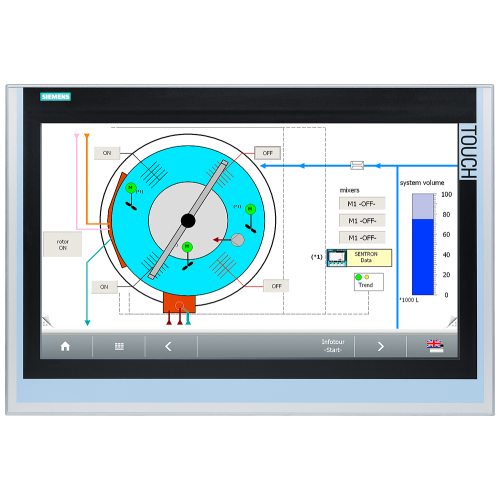

SIPLUS HMI TP2200 Comfort for medial exposure with conformal coating based on 6AV2124-0XC02-0AX0

Manufacturer's No: 6AG1124-0XC02-4AX0     Manufacturer: Siemens
SIPLUS HMI TP2200 Comfort for medial exposure with conformal coating based on 6AV2124-0XC02-0AX0

Availability On Request

POA

This product has been superseded by

6AG11240XC024AX1

Please check compatibility before purchasing.

  • SIPLUS HMI TP2200 Comfort with conformal coating
  • Based on model 6AV2124-0XC02-0AX0
  • Product cancelled since 01/10/19
  • Successor available: 6AG1124-0XC02-4AX1
  • Spare part product

Follow-up article



Product

Manufacturer Material ID -
6AG1124-0XC02-4AX0
Net Weight -
9.59kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
43211506

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Touch technology -
UN
Degree of protection (NEMA), front side -
UN
Built-in depth -
75 Millimetre
Operation temperature -
0 Degrees celsius
With printer output -
Number of interfaces PROFINET -
3
Additional software components, loadable -
Degree of protection (IP), front side -
IP65
Height of the front -
380 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
16777216
Number of function buttons, programmable -
0
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
3
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
3
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
2
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of password levels -
50
Number of pixels, horizontal -
1920
Number of pixels, vertical -
1080
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
75 Millimetre
Screen diagonal -
21.5 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
Type of display -
TFT
Useful project memory/user memory -
24000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
560 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -
-
- SIPLUS HMI TP2200 Comfort with conformal coating - Based on model 6AV2124-0XC02-0AX0 - Product cancelled since 01/10/19 - Successor available: 6AG1124-0XC02-4AX1 - Spare part product

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

6AG11240XC024AX1

Please check compatibility before purchasing.

Additional Information
