6AG11241QC024AX1

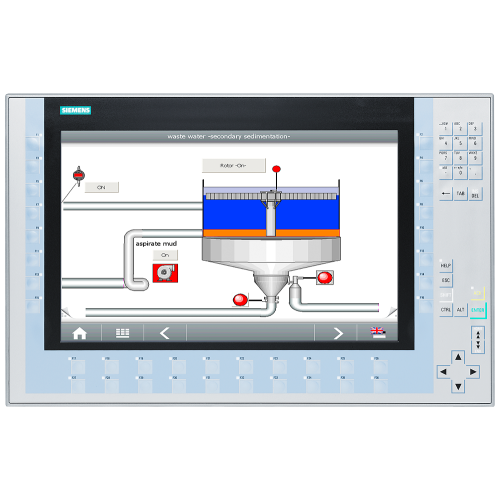

SIPLUS HMI KP1500 Comfort

Manufacturer's No: 6AG1124-1QC02-4AX1     Manufacturer: Siemens
SIPLUS HMI KP1500 Comfort

Availability On Request

£7,406.00
  • Model: SIPLUS HMI KP1500 Comfort (6AV2124-1QC02-0AX1)
  • Display: 15" widescreen TFT display with 16 million colors
  • Operating Temperature: 0 to +50°C
  • Interfaces: PROFINET, MPI/PROFIBUS DP
  • Memory: 24 MB configuration memory
  • Operating System: WEC 2013
  • Compatibility: Configurable with WinCC Comfort V14 SP1 with HSP


Product

Manufacturer Material ID -
6AG1124-1QC02-4AX1
Net Weight -
7.32kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
43211506

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA), front side -
UN
Built-in depth -
75 Millimetre
Operation temperature -
0 Degrees celsius
With printer output -
Number of interfaces PROFINET -
2
Additional software components, loadable -
Degree of protection (IP), front side -
IP65
Height of the front -
310 Millimetre
Number of buttons with LED -
36
Number of colours of the display -
16777216
Number of function buttons, programmable -
36
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
2
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of password levels -
50
Number of pixels, horizontal -
1280
Number of pixels, vertical -
800
Number of system buttons -
28
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
75 Millimetre
Screen diagonal -
15.4 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
Touch technology -
None
Type of display -
TFT
Useful project memory/user memory -
24000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
483 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability On Request

£7,406.00
