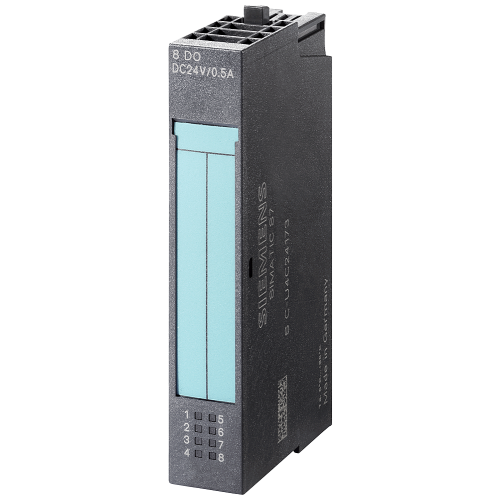

6AG11324BF007AA0

SIPLUS ET 200S EM 8 DO -25...+70 °C with conformal coating based on 6ES7132-4BF00-0AA0 . Electronic

Manufacturer's No: 6AG1132-4BF00-7AA0     Manufacturer: Siemens
SIPLUS ET 200S EM 8 DO -25...+70 °C with conformal coating based on 6ES7132-4BF00-0AA0 . Electronic

Availability On Request

POA
  • SIPLUS ET 200S EM 8 DO
  • Temperature range: -25°C to +70°C
  • Conformal coating
  • Part number: 6ES7132-4BF00-0AA0
  • Electronics module for ET 200S
  • 8 digital outputs (DO)
  • Voltage: 24 V DC, Current: 0.5A
  • Width: 15 mm
  • Packing unit: 1 unit

Accessories



Product

Manufacturer Material ID -
6AG1132-4BF00-7AA0
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Input current at signal 1 -
- Milliampere
Type of voltage (input voltage) -
UN
Explosion safety category for gas -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
0.3 Millisecond
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP20
Depth -
52 Millimetre
Digital outputs configurable -
Fieldbus connection over separate bus coupler possible -
Height -
81 Millimetre
Number of digital inputs -
0
Number of digital outputs -
8
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
0.5 Ampere
Permitted voltage at output -
17.4 Volt
Rail mounting possible -
Short-circuit protection, outputs available -
Supply voltage DC -
20.4 Volt
System accessory -
Time delay at signal change -
0.3 Millisecond
Type of digital output -
Transistor
Type of output voltage -
DC
Voltage type of supply voltage -
DC
Width -
15 Millimetre
-
- SIPLUS ET 200S EM 8 DO - Temperature range: -25°C to +70°C - Conformal coating - Part number: 6ES7132-4BF00-0AA0 - Electronics module for ET 200S - 8 digital outputs (DO) - Voltage: 24 V DC, Current: 0.5A - Width: 15 mm - Packing unit: 1 unit

Availability On Request

POA
