6AG11324HB122AB0

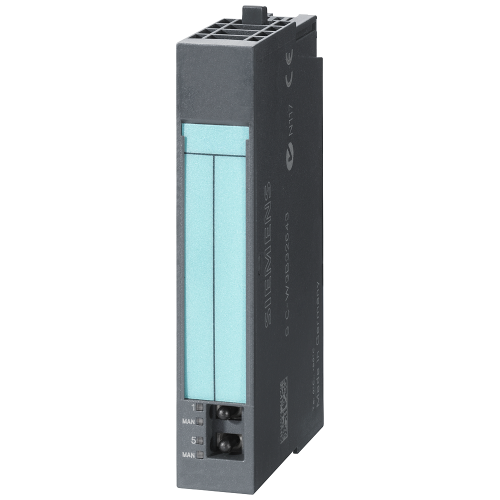

SIPLUS ET 200S EM 2DO RLY 24-48V DC 230V AC/5A -25...+60 °C based on 6ES7132-4HB12-0AB0 5 units per

Manufacturer's No: 6AG1132-4HB12-2AB0     Manufacturer: Siemens
SIPLUS ET 200S EM 2DO RLY 24-48V DC 230V AC/5A -25...+60 °C based on 6ES7132-4HB12-0AB0 5 units per

Availability On Request

POA
  • SIPLUS ET 200S EM 2DO RLY
  • Voltage: 24-48V DC, 230V AC/5A
  • Temperature range: -25 to +60°C
  • Part number: 6ES7132-4HB12-0AB0
  • End of product lifecycle: 16/04/24
  • Successor model: 6AG1132-4HB13-2AB0


Product

Manufacturer Material ID -
6AG1132-4HB12-2AB0
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Input current at signal 1 -
- Milliampere
Time delay at signal exchange -
- Millisecond
Type of voltage (input voltage) -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Width -
15 Millimetre
Height -
81 Millimetre
Depth -
52 Millimetre
Number of digital inputs -
0
Number of digital outputs -
2
Voltage type of supply voltage -
DC
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Output current -
5 Ampere
Type of digital output -
Relay
Type of electric connection -
Screw-/spring clamp connection
Rail mounting possible -
Fieldbus connection over separate bus coupler possible -
System accessory -
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Number of HW-interfaces Wireless -
0
Front build in possible -
Wall mounting/direct mounting -
Supply voltage DC -
20.4 Volt
Permitted voltage at output -
2 Volt
Type of output voltage -
AC/DC
Digital outputs configurable -
-
- SIPLUS ET 200S EM 2DO RLY - Voltage: 24-48V DC, 230V AC/5A - Temperature range: -25 to +60°C - Part number: 6ES7132-4HB12-0AB0 - End of product lifecycle: 16/04/24 - Successor model: 6AG1132-4HB13-2AB0
