6AG12151HG312XB0

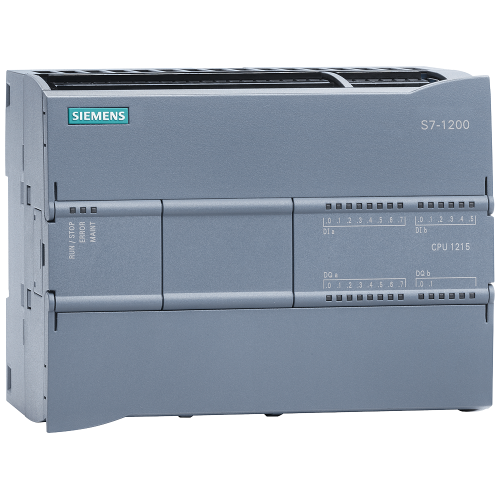

SIPLUS S7-1200 CPU 1215C DC/DC/relay -40...+70 °C with conformal coating Signal board usable based

Manufacturer's No: 6AG1215-1HG31-2XB0     Manufacturer: Siemens
SIPLUS S7-1200 CPU 1215C DC/DC/relay -40...+70 °C with conformal coating Signal board usable based

Availability On Request

POA

This product has been superseded by

6AG12151HG402XB0

Please check compatibility before purchasing.

  • SIPLUS S7-1200 CPU 1215C DC/DC/relay
  • Temperature range: -40 to +70°C with conformal coating
  • Signal board usable
  • End of product lifecycle: 16/04/24
  • Successor: 6AG1215-1HG40-2XB0


Product

Manufacturer Material ID -
6AG1215-1HG31-2XB0
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
UNSPSC -
43201503

Technical Specification

Number of HW-interfaces RS-232 -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Category according to EN 954-1 -
UN
Number of HW-interfaces Wireless -
-
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Width -
130 Millimetre
Model -
Compact
Height -
100 Millimetre
Depth -
75 Millimetre
Number of digital inputs -
14
Number of digital outputs -
10
Number of analogue inputs -
2
Number of analogue outputs -
2
Voltage type of supply voltage -
DC
Type of memory -
RAM
Memory size -
100 kiloByte (1000 Byte)
Processing time (1K, binary operation) -
0.09 Millisecond
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces other -
0
Supporting protocol for TCP/IP -
Supporting protocol for ASI -
Supporting protocol for PROFIBUS -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Rail mounting possible -
Number of interfaces PROFINET -
2
Front build in possible -
Rack-assembly possible -
Wall mounting/direct mounting -
Number of relay outputs -
10
Supporting protocol for PROFINET IO -
Supply voltage DC -
20.4 Volt
-
- SIPLUS S7-1200 CPU 1215C DC/DC/relay - Temperature range: -40 to +70°C with conformal coating - Signal board usable - End of product lifecycle: 16/04/24 - Successor: 6AG1215-1HG40-2XB0
