6AV66410CA010AX1

The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as

Manufacturer's No: 6AV6641-0CA01-0AX1     Manufacturer: Siemens
The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as

Availability Available to order

POA

This product has been superseded by

6AV21241DC010AX0

Please check compatibility before purchasing.

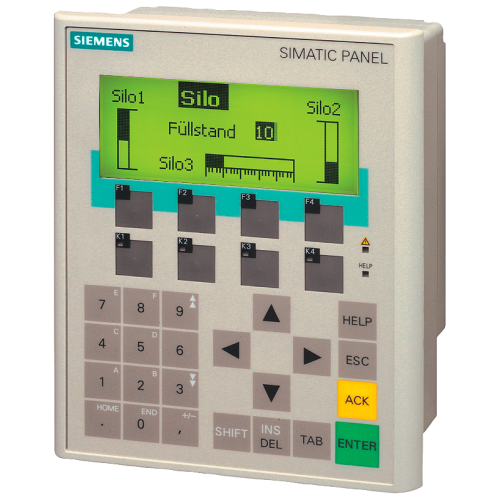

  • SIMATIC Operator Panel OP 77B
  • 4.5" LC display, backlit
  • Graphics-capable display
  • MPI/PROFIBUS DP interface, up to 12 MB
  • Printer/USB interface
  • Slot for MMC
  • Configurable with WinCC flexible 2004 Compact
  • Spare parts available for purchase
  • Price may vary from the new part
  • For more information, refer to SIMATIC current entry ID: 109486162


Product

Manufacturer Material ID -
6AV6641-0CA01-0AX1
Net Weight -
0.55kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5D002ENCU
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Built-in depth -
38.5 Millimetre
Operation temperature -
0 Degrees celsius
With printer output -
Number of interfaces PROFINET -
0
Degree of protection (NEMA), front side -
12
Additional software components, loadable -
Degree of protection (IP), front side -
IP65

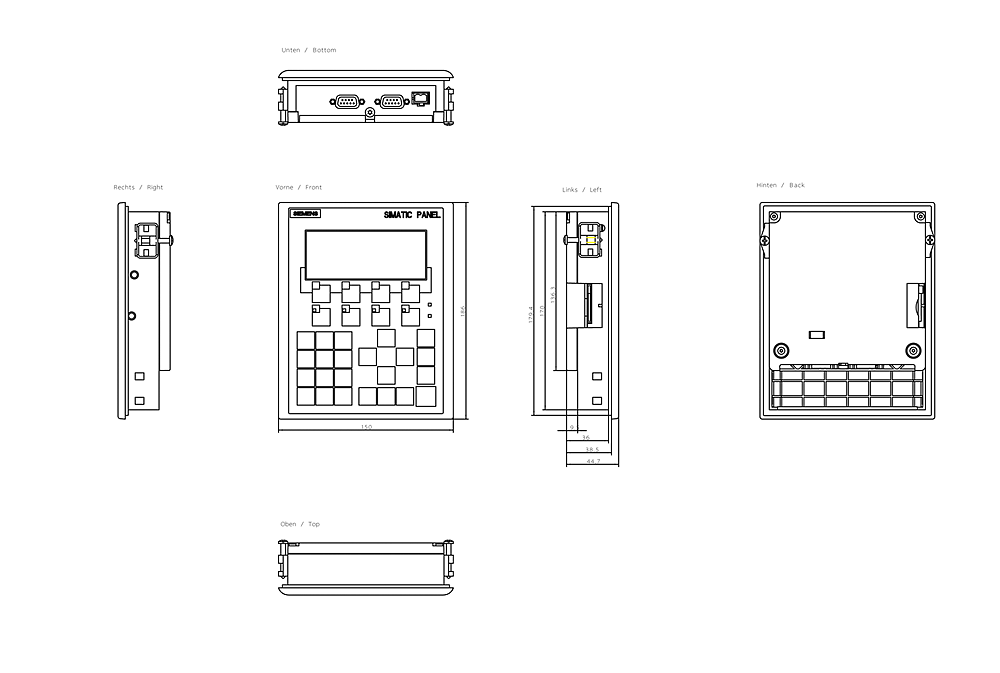

Height of the front -
186 Millimetre
Number of buttons with LED -
4
Number of colours of the display -
2
Number of function buttons, programmable -
8
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
1
Number of HW-interfaces Wireless -
0
Number of online languages -
5
Number of password levels -
50
Number of pixels, horizontal -
160
Number of pixels, vertical -
64
Number of system buttons -
23
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
38.5 Millimetre
Screen diagonal -
4.5 inch
Supply voltage DC -
20.4 Volt
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Touch technology -
None
Type of display -
STN
Useful project memory/user memory -
1000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
150 Millimetre
With alpha numeric keyboard -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -
Commodity Code -
85371098

Availability Available to order

POA
Sign in or Register for customer prices.

This product has been superseded by

6AV21241DC010AX0

Please check compatibility before purchasing.
