6AV66440BA012AX1

The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as

Manufacturer's No: 6AV6644-0BA01-2AX1     Manufacturer: Siemens
The new part, as of 01.01.2015, is blocked for delivery. Spare part can continue to be purchased as

Availability On Request

POA

This product has been superseded by

6AV21240QC020AX0

Please check compatibility before purchasing.

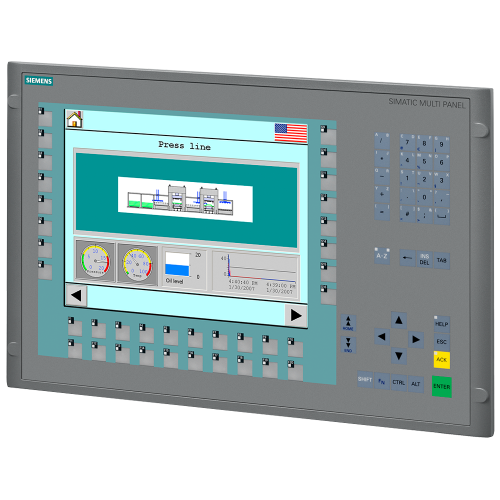

  • SIMATIC MP 377 12" Key Multi Panel
  • 12" color TFT display
  • Windows CE 5.0 operating system
  • 12 MB configuration memory
  • Configurable from WinCC flexible 2007
  • New key aluminum front design with uniform clamps
  • Spare parts available for purchase
  • Delivery of new parts blocked as of 01.01.2015
  • Price of spare parts may differ from new parts
  • Additional information: SIMATIC current entry ID: 109486162

Accessories



Product

Manufacturer Material ID -
6AV6644-0BA01-2AX1
Net Weight -
7.22kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5D002ENCU
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt

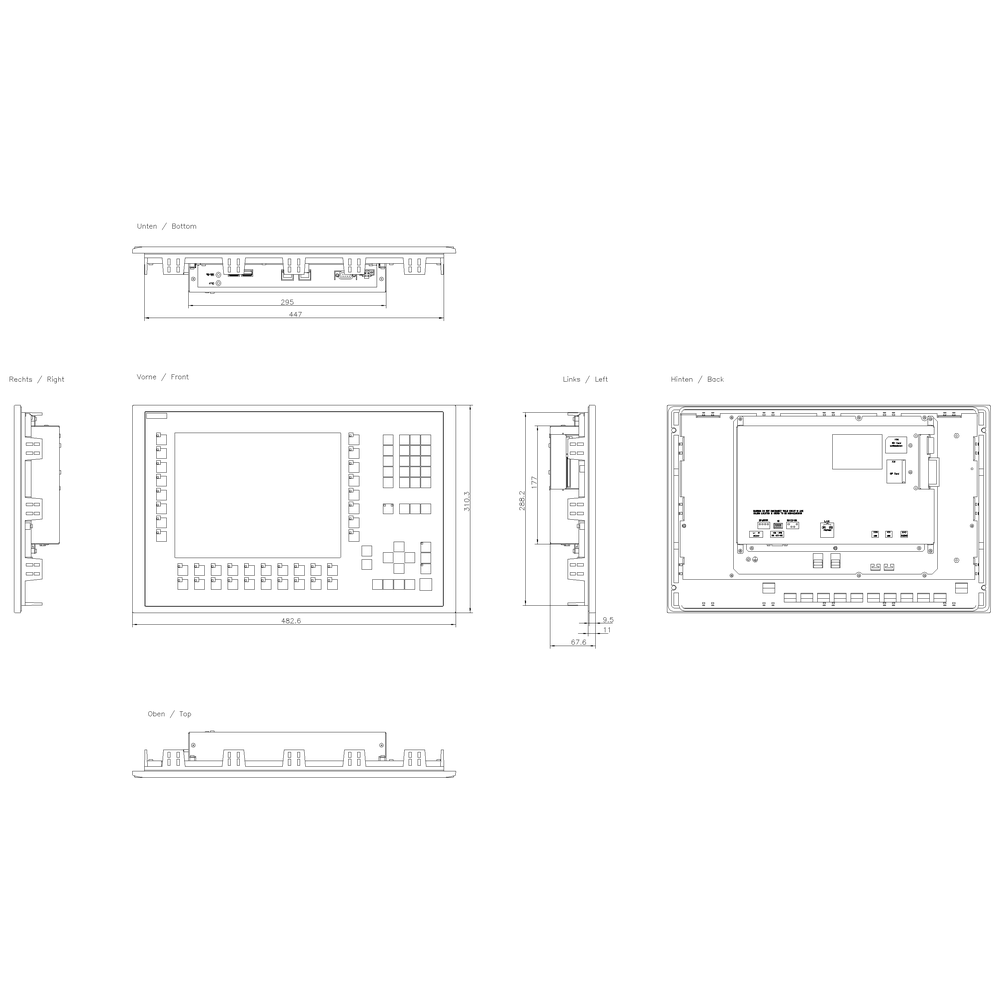

Built-in depth -
59 Millimetre
Operation temperature -
0 Degrees celsius
With printer output -
Number of interfaces PROFINET -
2
Degree of protection (NEMA), front side -
12
Additional software components, loadable -
Degree of protection (IP), front side -
IP65
Height of the front -
310 Millimetre
Number of buttons with LED -
36
Number of colours of the display -
65536
Number of function buttons, programmable -
36
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
2
Number of HW-interfaces Wireless -
0
Number of online languages -
16
Number of password levels -
50
Number of pixels, horizontal -
800
Number of pixels, vertical -
600
Number of system buttons -
38
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
59 Millimetre
Screen diagonal -
12.1 inch
Supply voltage DC -
20.4 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
Touch technology -
None
Type of display -
TFT
Useful project memory/user memory -
12288 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
483 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

6AV21240QC020AX0

Please check compatibility before purchasing.
