6AV66442AB012AX0

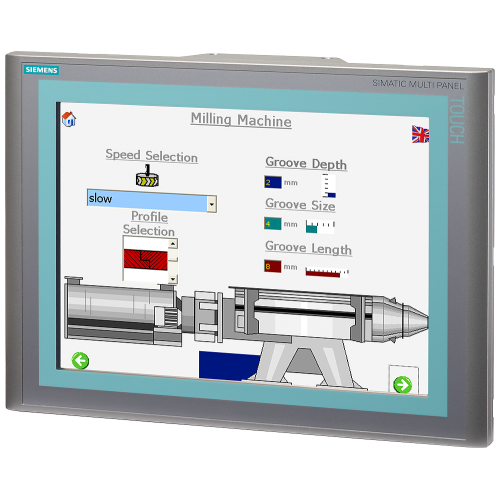

SIMATIC MP 377 pro 15" Touch multi panel, Windows CE 5.0 15" color TFT display 12 MB configuration m

Manufacturer's No: 6AV6644-2AB01-2AX0     Manufacturer: Siemens
SIMATIC MP 377 pro 15" Touch multi panel, Windows CE 5.0 15" color TFT display 12 MB configuration m

Availability On Request

POA
  • SIMATIC MP 377 Pro 15" Touch Multi Panel
  • Windows CE 5.0 operating system
  • 15" color TFT display
  • 12 MB configuration memory
  • Configurable from WinCC Flexible 2007

Accessories



Product

Manufacturer Material ID -
6AV6644-2AB01-2AX0
Net Weight -
8.46kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
5D992 / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Built-in depth -
98.5 Millimetre
Operation temperature -
0 Degrees celsius
With printer output -
Number of interfaces PROFINET -
2
Degree of protection (NEMA), front side -
4
Touch technology -
Resistive touch
Additional software components, loadable -
Degree of protection (IP), front side -
IP65
Height of the front -
310 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
65536
Number of function buttons, programmable -
0
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
2
Number of HW-interfaces Wireless -
0
Number of online languages -
5
Number of password levels -
50
Number of pixels, horizontal -
1024
Number of pixels, vertical -
768
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
98.5 Millimetre
Screen diagonal -
15 inch
Supply voltage DC -
20.4 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
Type of display -
TFT
Useful project memory/user memory -
12288 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
400 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -
