6AV66450DE010AX1

**** Spare part *** Does not correspond to the current version of the standard. For use outside the

Manufacturer's No: 6AV6645-0DE01-0AX1     Manufacturer: Siemens
**** Spare part *** Does not correspond to the current version of the standard. For use outside the

Availability On Request

POA
  • Spare part for use outside the EU
  • Compatible with SIMATIC Mobile Panel 277 IWLAN V2
  • Features handwheel, key-operated switch, and two illuminated pushbuttons
  • Configurable with WinCC flexible Standard Version 2008 or higher, or TIA Portal V11 SP2 or higher
  • Includes 1 main battery
  • Power supply options:
    • 6AV6671-5CE00-0AX1 charging station
    • 6AV6671-5CN00-0AX2 tabletop power supply unit (EU/US/UK/JP)


Product

Manufacturer Material ID -
6AV6645-0DE01-0AX1
Net Weight -
3.34kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Connection, pluggable -
Degree of protection (IP rating) -
IP65

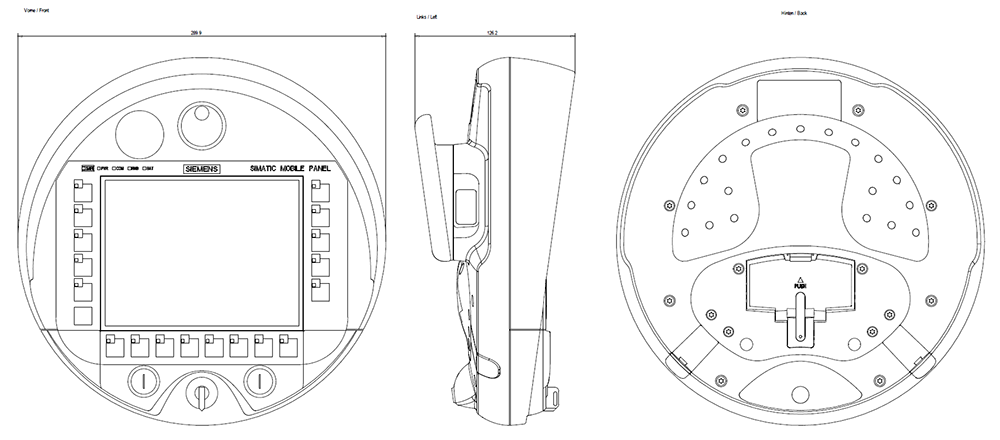

Depth -
103 Millimetre
Height -
290 Millimetre
Max. height of fall (in accordance with IEC 60068-2-32) -
1.2 Metre
Number of buttons with LED -
18
Number of colours of the display -
65536
Number of function buttons, programmable -
18
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
1
Number of HW-interfaces Wireless -
1
Number of online languages -
16
Number of password levels -
50
Number of pixels, horizontal -
640
Number of pixels, vertical -
480
Operating temperature -
0 Degrees celsius
Process default value (input) possible -
Process value representation (output) possible -
Radio standard WLAN 802.11 -
Screen diagonal -
7.5 inch
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
Type of display -
TFT
Useful project memory/user memory -
6000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Weight -
2.2 Kilogram
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With recipes -
With touch screen -
