6AV66461AB220AX0

SIMATIC ITC1500 (1280 x 800) 15” Display

Manufacturer's No: 6AV6646-1AB22-0AX0     Manufacturer: Siemens

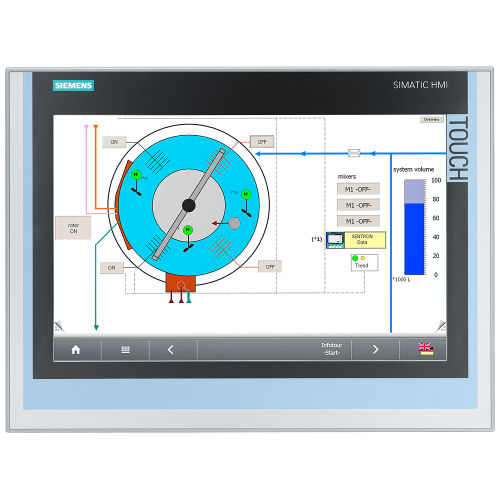

SIMATIC ITC1500 (1280 x 800) 15” Display

View 3D

Availability Back Order

POA
  • Model: SIMATIC ITC1500
  • Display: 15" widescreen TFT display with a resolution of 1280 x 800
  • Touch operation capability
  • Supported protocols: RDP, VNC, SMARTSERVER, Web

Accessories



Product

Manufacturer Material ID -
6AV6646-1AB22-0AX0
Net Weight -
6.10kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Number of HW-interfaces Wireless -
-
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Preinstalled operating system -
UN
Degree of protection (NEMA) -
UN
Built-in depth -
75 Millimetre
Operation temperature -
0 Degrees celsius

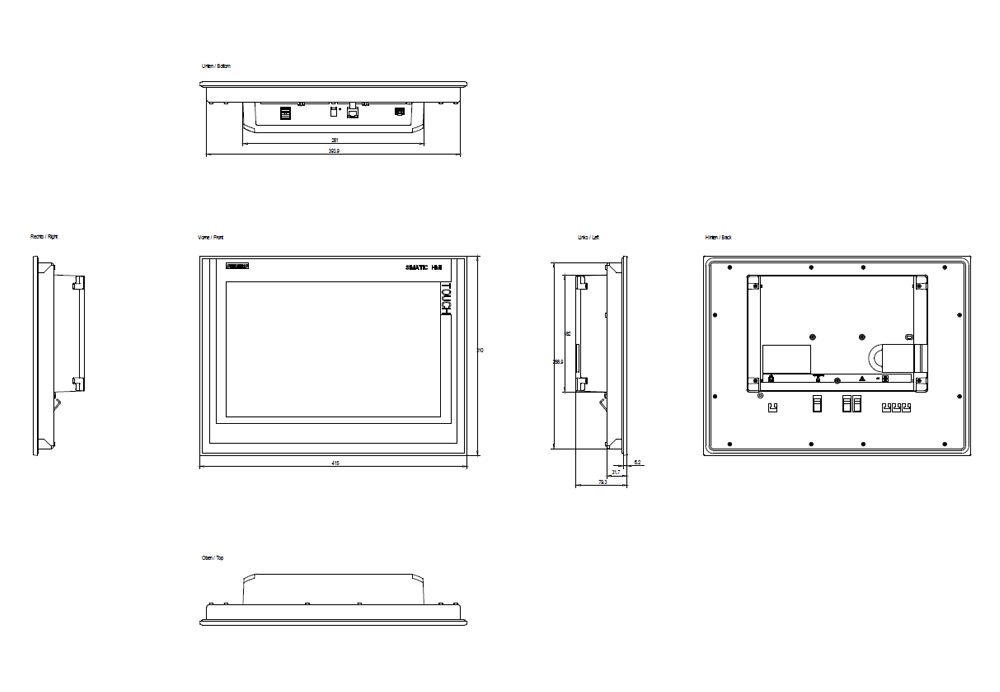

Width of the front -
415 Millimetre
Height of the front -
310 Millimetre
Number of interfaces PROFINET -
1
Front build in possible -
Type of display -
TFT
Degree of protection (IP), front side -
IP65
Front built-in possible -
Max. main memory -
512 Megabyte
Number of buttons with LED -
0
Number of free AGP-slots -
0
Number of free ISA-slots -
0
Number of free PCI-slots -
0
Number of free PCMCIA-slots -
0
Number of function buttons -
0
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces PS2 -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces SCSI -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
2
Number of pixels, horizontal -
1280
Number of pixels, vertical -
800
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Recess depth -
75 Millimetre
Screen diagonal -
15.4 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for other bus systems -
Voltage type of supply voltage -
DC
With hard disc -
With touch screen -

Availability Back Order

POA
