6AV78633AA000AA0

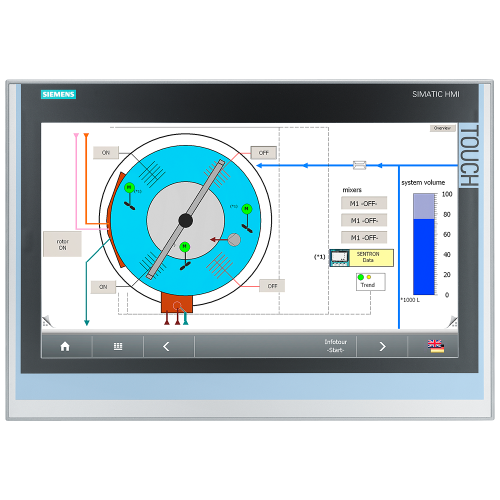

SIMATIC Flat Panel (1366 x 768) 19" Display ONLY, 24vdc, DisplayPort/DVI incl. Cables

Manufacturer's No: 6AV7863-3AA00-0AA0     Manufacturer: Siemens
SIMATIC Flat Panel (1366 x 768) 19" Display ONLY, 24vdc, DisplayPort/DVI incl. Cables

View 3D

Availability Back Order

POA
  • 19" SIMATIC Flat Panel Display
  • Resolution: 1366 x 768 pixels
  • Aspect Ratio: 16:9
  • Input Voltage: 24 V DC
  • Interface: DisplayPort/DVI
  • Includes DVI cable (1.8 m)
  • Non-touch display
  • Standard cable length: up to 5 m


Product

Manufacturer Material ID -
6AV7863-3AA00-0AA0
Net Weight -
8.24kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

Horizontal frequency -
- kiloHertz
Frame frequency -
- kiloHertz
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of grey-scales/blue-scales of display -
-
Built-in depth -
62.5 Millimetre
Operation temperature -
0 Degrees celsius
Front build in possible -
Type of display -
TFT
Degree of protection (IP), front side -
IP65
Front built-in possible -
Height of the front -
337 Millimetre
Number of colours of the display -
16777216
Number of function buttons -
0
Number of pixels, horizontal -
1366
Number of pixels, vertical -
768
Operating temperature -
0 Degrees celsius
Recess depth -
62.5 Millimetre
Screen diagonal -
18.5 inch
Supply voltage DC -
19.2 Volt
Voltage type of supply voltage -
DC
Width of the front -
483 Millimetre
With colour display -
With HW-interface digital video signal -

Availability Back Order

POA
