6EP13341LD00

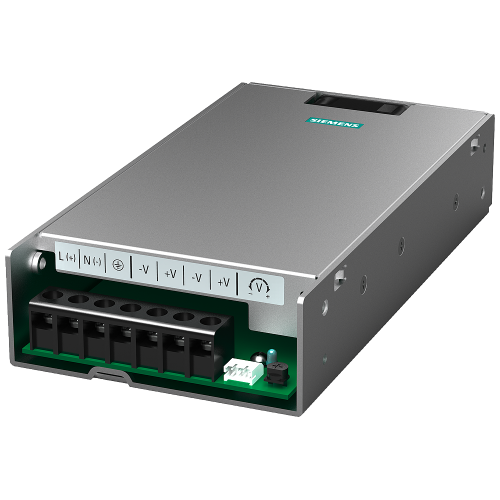

Power supply SITOP PSU100D, single-phase 24 V DC/12.5 A for wall mounting

Manufacturer's No: 6EP1334-1LD00     Manufacturer: Siemens
Power supply SITOP PSU100D, single-phase 24 V DC/12.5 A for wall mounting

View 3D

Availability Back Order

POA
  • Power supply model: SITOP PSU100D
  • Input voltage: 100-240 V AC
  • Output voltage: 24 V DC
  • Output current: 12.5 A
  • Mounting: Wall-mounted
  • Stabilized power supply

Accessories



Product

Manufacturer Material ID -
6EP1334-1LD00
Net Weight -
0.87kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
TH
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Built-in height -
- Millimetre
Power consumption -
- Voltampere
Built-in width -
- Millimetre
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Voltage type of supply voltage -
AC
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
41 Millimetre
Direct mounting possible -
Height -
199 Millimetre
Max. output current 1 -
12.5 Ampere
Nominal value output current 1 -
12.5 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
300 Watt
Rated supply voltage at AC 50 Hz -
240 Volt
Rated supply voltage at AC 60 Hz -
100 Volt
Secondary voltage adjustable -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Screw connection
Wall mounting possible -
Width -
105 Millimetre

Availability Back Order

POA
