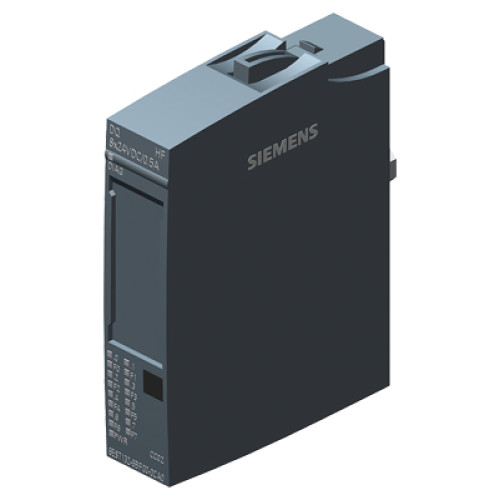

6ES71326BF002CA0

SIMATIC ET 200SP DQ 8x24 V DC/0.5 A HF PU 10

Manufacturer's No: 6ES7132-6BF00-2CA0     Manufacturer: Siemens
SIMATIC ET 200SP DQ 8x24 V DC/0.5 A HF PU 10

Availability On Request

POA
  • SIMATIC ET 200SP DQ 8x24 V DC/0.5 A HF PU 10
  • Digital output module for SIMATIC ET 200SP
  • 8 channels with 24V DC and 0.5A High Feature
  • Source output PNP with P-switching
  • Packaging unit: 10 pieces
  • Suitable for BU type A0 with color code CC02
  • Channel diagnosis for short circuit and wire break
  • LED indicators for power supply and channel failure

Mandatory additional product

Follow-up article

SIMATIC ET 200SP DQ 8x24VDC/0.5A HF PU 10

Product Code - 6ES71326BF012CA0
Price £77.00
On Request

Spare part

Product video
Product video


Product

Manufacturer Material ID -
6ES7132-6BF00-2CA0
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Input current at signal 1 -
- Milliampere
Time delay at signal exchange -
- Millisecond
Type of voltage (input voltage) -
UN
Category according to EN 954-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at input -
- Volt
SIL according to IEC 61508 -
UN
Type of digital output -
Other
Type of electric connection -
Plug-in connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Performance level acc. EN ISO 13849-1 -
Level d
Degree of protection (IP rating) -
IP20
Depth -
58 Millimetre
Digital outputs configurable -
Fieldbus connection over separate bus coupler possible -
Height -
73 Millimetre
Number of digital inputs -
0
Number of digital outputs -
8
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
0.5 Ampere
Permitted voltage at output -
19.2 Volt
Rail mounting possible -
Short-circuit protection, outputs available -
Supply voltage DC -
19.2 Volt
System accessory -
Type of output voltage -
DC
Voltage type of supply voltage -
DC
Width -
15 Millimetre

Availability On Request

POA
