6ES71354GB520AB0

SIMATIC DP, Electronics module for ET 200S, 2 AO I High Speed 15 mm width, +/-20mA; 16 bit, 4..20 mA

Manufacturer's No: 6ES7135-4GB52-0AB0     Manufacturer: Siemens
SIMATIC DP, Electronics module for ET 200S, 2 AO I High Speed 15 mm width, +/-20mA; 16 bit, 4..20 mA

Availability On Request

POA
  • Electronics module for ET 200S
  • 2 analog outputs (AO I)
  • High Speed with 15mm width
  • Output range: +/-20mA
  • Resolution: 16 bit
  • Output range: 4-20mA
  • Cycle time: 0.1 ms
  • SF LED for group fault indication

Accessories



Product

Manufacturer Material ID -
6ES7135-4GB52-0AB0
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Resolution of the analogue inputs -
- Bit
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Analogue outputs configurable -
Degree of protection (IP rating) -
IP20

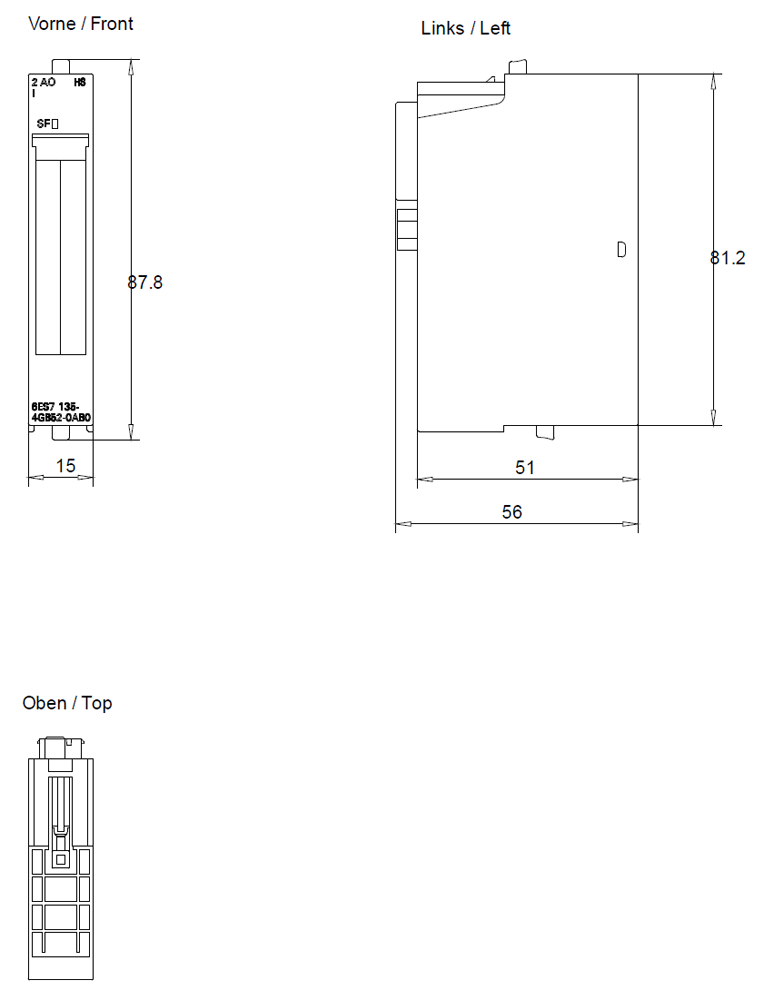

Depth -
52 Millimetre
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
81 Millimetre
Number of analogue inputs -
0
Number of analogue outputs -
2
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output signal configurable -
Output, current -
Rail mounting possible -
Resolution of the analogue outputs -
16 Bit
Supply voltage DC -
20.4 Volt
System accessory -
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
15 Millimetre

Availability On Request

POA
