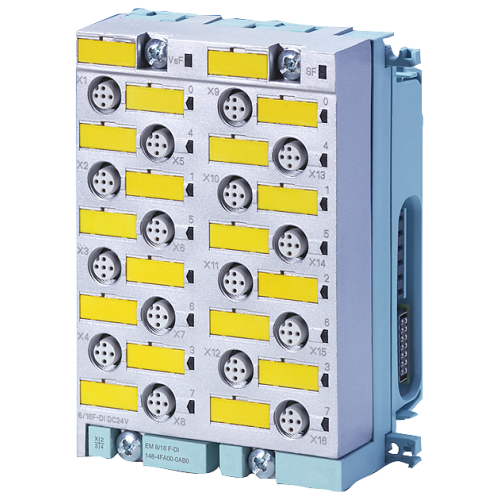

6ES71484FA000AB0

SIMATIC DP, ET200 PRO Fail-safe electronic module 8/16 F-DI 24 V DC PROFIsafe, 90 mm overall width,

Manufacturer's No: 6ES7148-4FA00-0AB0     Manufacturer: Siemens
SIMATIC DP, ET200 PRO Fail-safe electronic module 8/16 F-DI 24 V DC PROFIsafe, 90 mm overall width,

View 3D

Availability Back Order

£506.00
  • SIMATIC DP ET200 PRO Fail-safe electronic module
  • 8/16 F-DI 24 V DC PROFIsafe
  • 90 mm overall width
  • Supports up to Category 4 (EN 954-1), SIL3 (IEC61508), PLE (ISO13849)

Mandatory additional product

Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ES7148-4FA00-0AB0
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
32151705

Technical Specification

Output current -
- Ampere
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at output -
- Volt
Type of output voltage -
UN
Time delay at signal exchange -
0.3 Millisecond
Degree of protection (IP) -
IP65/IP67
Category according to EN 954-1 -
4
Number of interfaces PROFINET -
0
Front build in possible -
Performance level acc. EN ISO 13849-1 -
Level e
Type of electric connection -
Plug-in connection
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP65/IP67
Performance level acc. to EN ISO 13849-1 -
Level e
Depth -
65 Millimetre
Digital inputs configurable -
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
130 Millimetre
Input current at signal 1 -
3.7 Milliampere
Number of digital inputs -
16
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Permitted voltage at input -
-30 Volt
Rail mounting possible -
SIL according to IEC 61508 -
3
Suitable for safety functions -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFIsafe -
System accessory -
Time delay at signal change -
0.3 Millisecond
Type of digital output -
None
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
90 Millimetre
