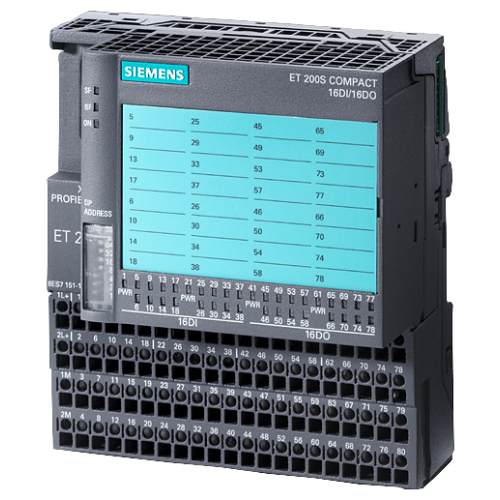

6ES71511CA001BL0

ET200S 32DI, Profibus DP + 32DI, 24 Vdc, Max 12 Modules

Manufacturer's No: 6ES7151-1CA00-1BL0     Manufacturer: Siemens
ET200S 32DI, Profibus DP + 32DI, 24 Vdc, Max 12 Modules

View 3D

Availability Back Order

POA
  • ET200S 32DI with Profibus DP
  • 32 digital inputs at 24 Vdc
  • Compact design with 32DI STD
  • Response time of 3ms
  • Expandable by up to 12 modules
  • Not compatible with F modules

Accessories



Product

Manufacturer Material ID -
6ES7151-1CA00-1BL0
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Output current -
- Ampere
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at output -
- Volt
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
1.2 Millisecond
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Degree of protection (IP rating) -
IP20

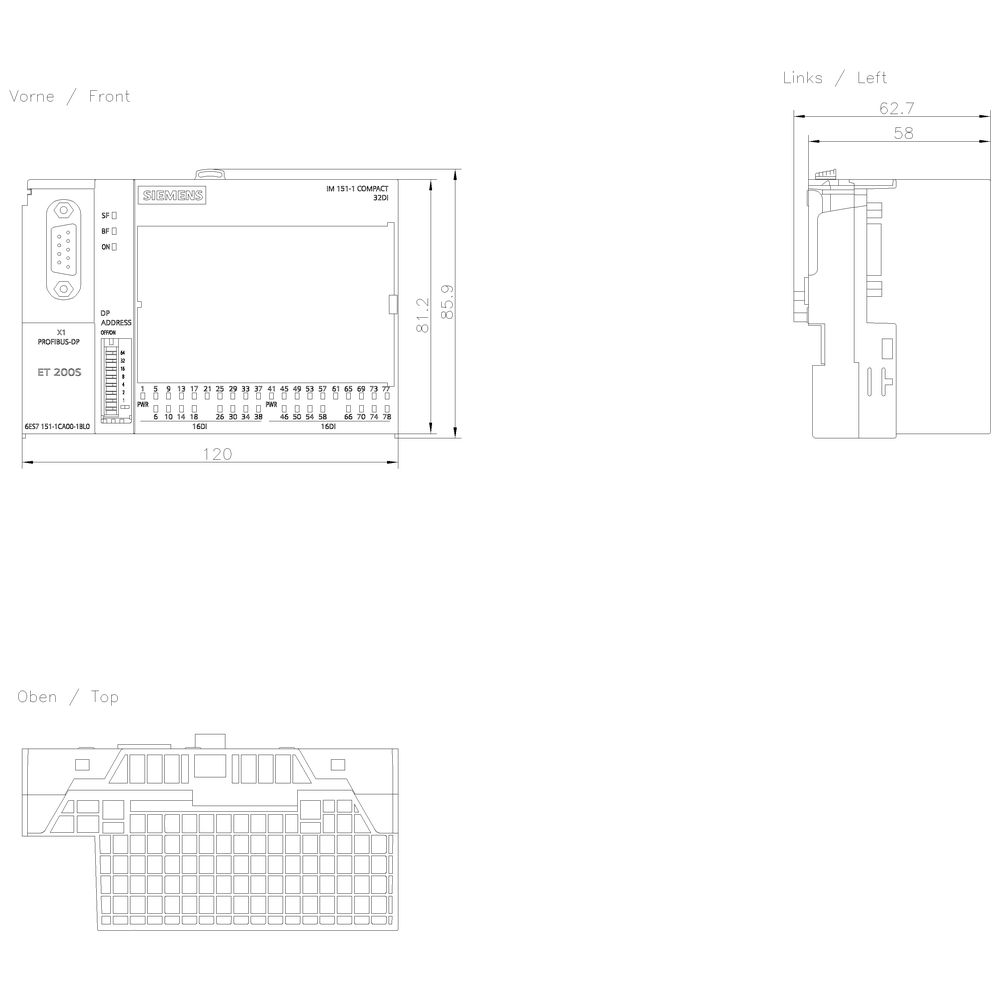

Depth -
58 Millimetre
Digital inputs configurable -
Digital outputs configurable -
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
81 Millimetre
Input current at signal 1 -
4 Milliampere
Number of digital inputs -
32
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Permitted voltage at input -
-3 Volt
Rail mounting possible -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFIBUS -
System accessory -
Time delay at signal change -
1.2 Millisecond
Type of digital output -
None
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
120 Millimetre
