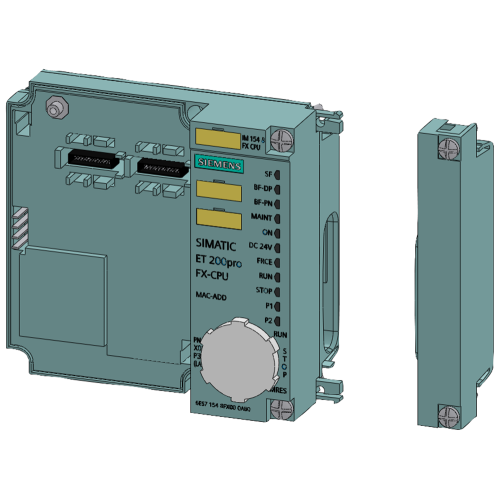

6ES71548FX000AB0

SIMATIC DP, IM154-8FX PN/DP CPU f. ET200 PRO, 1.5 MB work memory, Int. PROFINET interface, Int. PROF

Manufacturer's No: 6ES7154-8FX00-0AB0     Manufacturer: Siemens
SIMATIC DP, IM154-8FX PN/DP CPU f. ET200 PRO, 1.5 MB work memory, Int. PROFINET interface, Int. PROF

Availability Available to order

POA
  • Model: SIMATIC DP IM154-8FX PN/DP CPU for ET200 PRO
  • Work Memory: 1.5 MB
  • Interfaces: Internal PROFINET, Internal PROFIBUS DP master/slave
  • Degree of Protection: IP65/67
  • Additional Requirements: Micro Memory Card and Connection Module

Mandatory additional product

Accessories

Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ES7154-8FX00-0AB0
Net Weight -
0.76kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Output voltage at AC 50 Hz -
- Volt
Output voltage at AC 60 Hz -
- Volt
Output voltage at DC -
- Volt
Input voltage at AC 50 Hz -
- Volt
Input voltage at AC 60 Hz -
- Volt
Max. output current AC 50 Hz -
- Ampere
Max. output current AC 60 Hz -
- Ampere
Max. output current DC -
- Ampere
Max. input current AC 50 Hz -
- Ampere
Max. input current AC 60 Hz -
- Ampere
Max. input current DC -
- Ampere
Type of output voltage -
UN
With bus coupler for modular station connection -
Degree of protection (IP) -
IP65/IP67
Category according to EN 954-1 -
4
Number of interfaces PROFINET -
1
Performance level acc. EN ISO 13849-1 -
Level e
Type of electric connection -
Plug-in connection
Degree of protection (IP rating) -
IP65/IP67
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Bus coupler for modular station connection available -
Depth -
65 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible -
Height -
130 Millimetre
Input voltage at DC -
20.4 Volt
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of slots -
16
Rail mounting possible -
Suitable for safety functions -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET CBA -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
System accessory -
Type of voltage (input voltage) -
DC
Wall mounting/direct mounting -
Width -
135 Millimetre
With pluggable modules, analogue I/O -
With pluggable modules, central modules -
With pluggable modules, communication modules -
With pluggable modules, digital I/O -
With pluggable modules, function and technology modules -
With pluggable modules, others -
With potential separation -

Availability Available to order

POA
