6ES75152FM010AB0

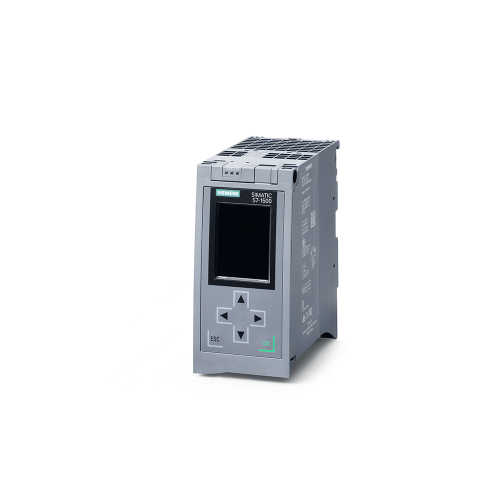

CPU 1515F-2 PN, 750 kB / 3 MB, 1xPN interface with 2 port switch, requires MMC

Manufacturer's No: 6ES7515-2FM01-0AB0     Manufacturer: Siemens
CPU 1515F-2 PN, 750 kB / 3 MB, 1xPN interface with 2 port switch, requires MMC

Availability Available to order

POA

This product has been superseded by

6ES75152FN030AB0

Please check compatibility before purchasing.

  • Model: CPU 1515F-2 PN
  • Memory: 750 kB RAM / 3 MB Flash
  • Interface: 1x Profinet (PN) with 2-port switch
  • Requires Memory Card (MMC)
  • Product discontinued since: 01/06/20
  • Successor model: 6ES7515-2FN03-0AB0
  • Spare part product
  • Contact local Siemens office for assistance


Product

Manufacturer Material ID -
6ES7515-2FM01-0AB0
Net Weight -
0.89kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
-
Siemens
Category according to EN 954-1 -
UN
Max. number of time switches -
-
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Width -
70 Millimetre
Model -
Modular
Height -
147 Millimetre
Depth -
129 Millimetre
With display -
Suitable for safety functions -
Number of digital inputs -
0
Number of digital outputs -
0
Number of analogue inputs -
0
Number of analogue outputs -
0
Voltage type of supply voltage -
DC
Type of memory -
Other
Memory size -
3750 kiloByte (1000 Byte)
Processing time (1K, binary operation) -
0.03 Millisecond
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Supporting protocol for TCP/IP -
Supporting protocol for MODBUS -
Rail mounting possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
System accessory -
Number of interfaces PROFINET -
2
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Performance level acc. EN ISO 13849-1 -
Level e
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supply voltage DC -
19.2 Volt
SIL according to IEC 61508 -
3
last_sent_to_siemens_at -
2026-08-03 17:08:11

Availability Available to order

POA
Sign in or Register for customer prices.

This product has been superseded by

6ES75152FN030AB0

Please check compatibility before purchasing.
