6ES76772AA410FL0

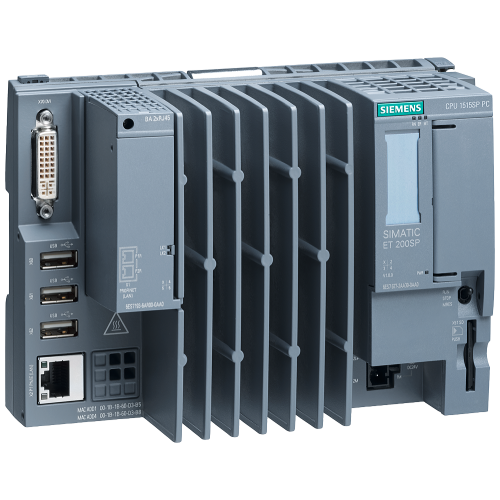

CPU 1515SP PC + HMI 512PT (4 GB RAM)

Manufacturer's No: 6ES7677-2AA41-0FL0     Manufacturer: Siemens
CPU 1515SP PC + HMI 512PT (4 GB RAM)

View 3D

Availability Back Order

POA
  • CPU 1515SP PC + HMI 512PT with 4 GB RAM
  • SIMATIC ET 200SP Open Controllers with CPU 1515SP PC + HMI 512PT
  • 30 GB CFAST with WES 7 P 64 bit pre-installed
  • S7-1500 software controller CPU 1505SP F pre-installed
  • WinCC Runtime Advanced V14 pre-installed with 512 PowerTags license
  • Interfaces: 1x slot CFAST, 1x slot SD/MMC, 1x connection for ET 200SP bus adapter PROFINET, 1x 10/100/1000 Mbit/s Ethernet, 3x USB, 1x DVI-I graphics card connection
  • Documentation on DVD, Restore DVD

  • SIMATIC ET 200SP: multifunctional IO system for various applications, finely scalable, designed for compact control cabinets

  • Supports numerous communication protocols, high speed, and transmission rates for enhanced performance
  • Direct connection of 2, 3, or 4-wire sensors or actuators

Read more

  • SIMATIC ET 200SP Open Controller: combines PC-based software controller, visualization, PC applications, and central I/Os in a single compact device

Selectable mandatory product

Product video
Product video


Product

Manufacturer Material ID -
6ES7677-2AA41-0FL0
Net Weight -
1.08kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5D992
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
-
Siemens
Type of electric connection -
UN
Category according to EN 954-1 -
UN
Output voltage at AC 50 Hz -
- Volt
Output voltage at AC 60 Hz -
- Volt
Output voltage at DC -
- Volt
Input voltage at AC 50 Hz -
- Volt
Input voltage at AC 60 Hz -
- Volt
Max. output current AC 50 Hz -
- Ampere
Max. output current AC 60 Hz -
- Ampere
Max. output current DC -
- Ampere
Max. input current AC 50 Hz -
- Ampere
Max. input current AC 60 Hz -
- Ampere
Max. input current DC -
- Ampere
Performance level acc. EN ISO 13849-1 -
UN
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
With bus coupler for modular station connection -
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
1
Bus coupler for modular station connection available -
Degree of protection (IP rating) -
IP20

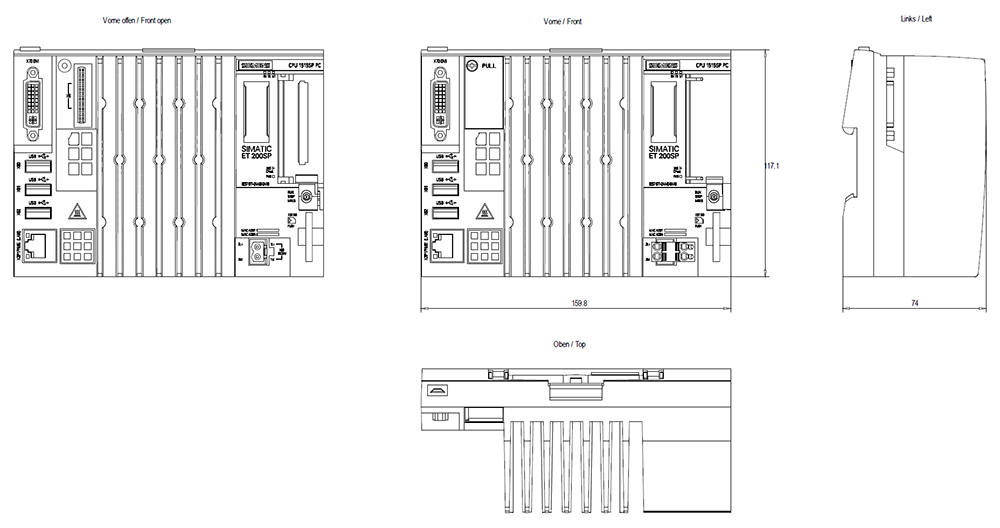

Depth -
75 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible -
Height -
117 Millimetre
Input voltage at DC -
19.2 Volt
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
3
Number of HW-interfaces Wireless -
0
Number of slots -
64
Rail mounting possible -
Supporting protocol for MODBUS -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Type of voltage (input voltage) -
DC
Wall mounting/direct mounting -
Width -
160 Millimetre
With integrated power supply -
With pluggable modules, analogue I/O -
With pluggable modules, central modules -
With pluggable modules, communication modules -
With pluggable modules, digital I/O -
With pluggable modules, function and technology modules -
With pluggable modules, others -
