6FB11030AT115MA0

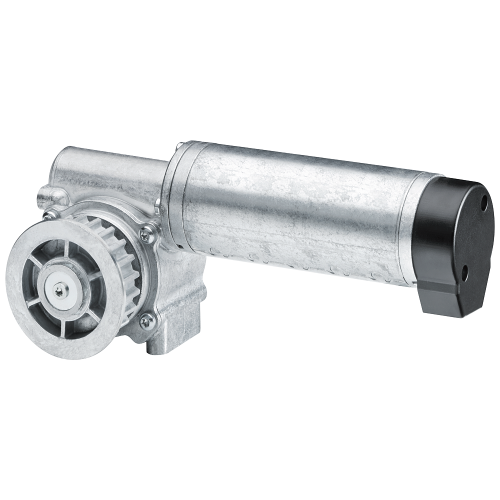

SIDOOR M2 R With driven gear on the right

Manufacturer's No: 6FB1103-0AT11-5MA0     Manufacturer: Siemens
SIDOOR M2 R With driven gear on the right

Availability On Request

£242.34
  • SIDOOR M2 R geared motor
  • Pinion for right side installation
  • Maximum door weight: 120 kg
  • Cable length: 1.5 meters
  • Operating voltage: 24VDC
  • Temperature range: -20°C to +50°C


Product

Manufacturer Material ID -
6FB1103-0AT11-5MA0
Net Weight -
2.90kg

Additional Product Information

Commodity Code -
85013100
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
UNSPSC -
26101205

Technical Specification

-
Siemens
Degree of protection (IP) -
UN
Supply voltage DC -
- Volt
Diameter -
48 Millimetre
Gear ratio -
15
Height -
90 Millimetre
Length -
207 Millimetre
Max. door/gate weight -
120 Kilogram
Max. speed -
0.5 Metre per second
Nominal operating current -
1.8 Ampere
Pinion position -
Right

Availability On Request

£242.34
