6FB12111AT107AT3

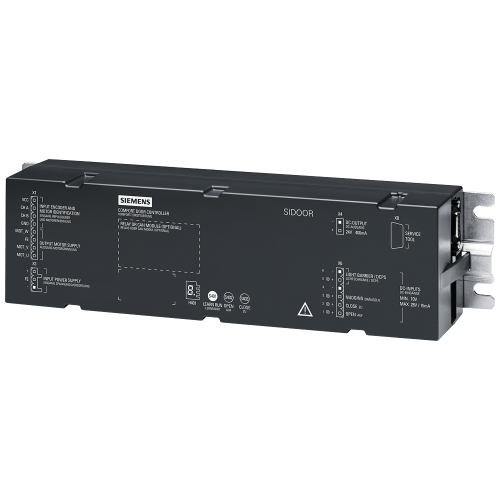

SIDOOR ATE500E CAN With CAN interface For elevator doors

Manufacturer's No: 6FB1211-1AT10-7AT3     Manufacturer: Siemens
SIDOOR ATE500E CAN With CAN interface For elevator doors

Availability On Request

POA
  • Control device for elevator doors
  • Horizontal installation
  • Supports doors up to 280 kg
  • Operating voltage: 36VDC
  • Interfaces: 1RS485, 1CAN
  • Inputs: 4*DI (Digital Inputs)
  • Outputs: 2Relay, 124VDC Out
  • Operating temperature: -25 to +50 °C


Product

Manufacturer Material ID -
6FB1211-1AT10-7AT3
Net Weight -
0.68kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 3A991X
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

-
Siemens
Nominal electricity consumption -
- Ampere
Rated frequency -
- Hertz
Supply voltage AC -
- Volt
Degree of protection (IP) -
IP20
Serial interface -
Type of power supply -
External
Control exits -
Control inputs -
Degree of protection (IP rating) -
IP20
Input current per DC input -
0.003 Ampere
Input voltage per DC input -
10 Volt
Manufacturer specific system components required -
Max. door/gate weight -
280 Kilogram
Max. door/gate width -
5000 Millimetre
Max. opening cycles per hour -
0.05
Max. output current DC -
0.4 Ampere
Model -
Control device
Nominal power consumption -
85 Watt
Supply voltage DC -
36 Volt

Availability On Request

POA
