6GF34408BD1

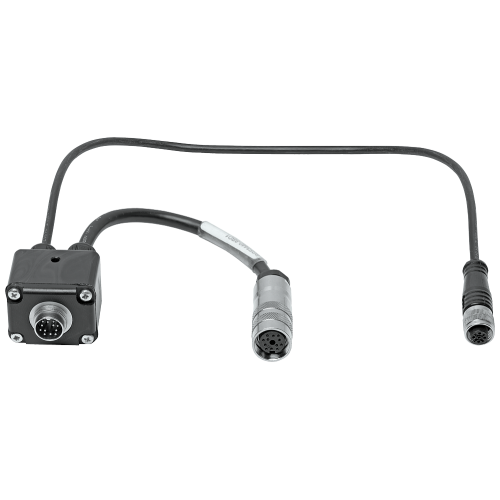

Adapter cable MV400 ring lamps; permits the subsequent connection of 6GF3400-0LT0-7BA1 and 6GF3400-0

Manufacturer's No: 6GF3440-8BD1     Manufacturer: Siemens
Adapter cable MV400 ring lamps; permits the subsequent connection of 6GF3400-0LT0-7BA1 and 6GF3400-0

Availability On Request

POA
  • Adapter cable MV400 for connecting 6GF3400-0LT0-7BA1 and 6GF3400-0LT0-8BA1 to MV420 and MV440
  • Compatible with power supply via 6GF3440-8BA2 or 6GF3440-8BA4
  • Connections: M16, 12-pole socket; M16, 12-pole connector; M12, 4-pole socket
  • Effective length: 25 cm


Product

Manufacturer Material ID -
6GF3440-8BD1
Net Weight -
0.64kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
26121609

Technical Specification

AWG-size -
-
Anti-kink sleeve -
UN
Cable construction -
UN
Colour anti-kink sleeve -
UN
Case connector connection 1 -
UN
Case connector connection 2 -
UN
Material connector of connector housing connection 1 -
UN
Material connector of connector housing connection 2 -
UN
NVP value -
- Percentage
Cable type -
Other
Flame retardant -
No
Pin assignment -
Other
Length -
0.25 Metre
Colour outer sheath -
Black
Type of connector connection 1 -
Other
Type of connector connection 2 -
Other
Degree of protection (IP) -
Other
Category -
Other
Core identification -
Colour
Individual screen type -
None
Min. permitted bending radius, moving application with forced guidance -
23.6 Millimetre
Min. permitted bending radius, moving application/free movement -
23.6 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
23.6 Millimetre
Number of cores -
12
Outer diameter approx. -
4.7 Millimetre
Overall screen type -
None
Permitted cable outer temperature after assembling without vibration -
-15 Degrees celsius
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Sheath colour -
Black
Stranding element -
No
