6GK53203BF002AA3

X320-3LD FE Fast Ethernet; 1x multimode, max. 5 km; 2x Long-distance, singlemode, max. 26 km - 20 x RJ45 ports

Manufacturer's No: 6GK5320-3BF00-2AA3     Manufacturer: Siemens
X320-3LD FE Fast Ethernet; 1x multimode, max. 5 km; 2x Long-distance, singlemode, max. 26 km - 20 x RJ45 ports

View 3D

Availability Back Order

£5,472.87

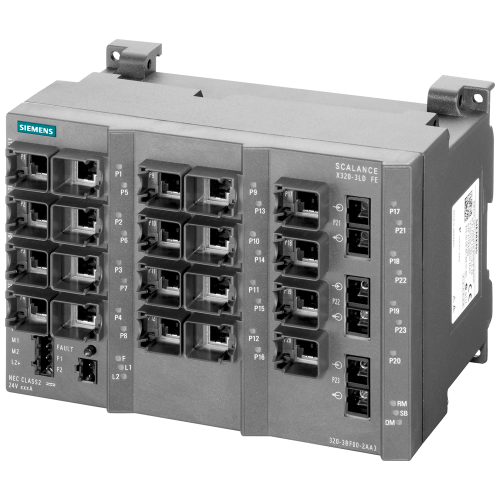

  • SCALANCE X320-3LDFE managed IE switch
  • 20x 10/100 Mbit/s RJ45 ports
  • 1x 100 Mbit/s SC Port MM
  • 2x 100 Mbit/s SC Port SM
  • LED diagnostics
  • Error signaling contact with select/set pushbutton
  • PROFINET IO device
  • Network management
  • Integrated redundancy manager
  • Office features: RSTP, VLAN, IGMP

Read more

  • C-PLUG included in scope of supply

Accessories



Product

Manufacturer Material ID -
6GK5320-3BF00-2AA3
Net Weight -
1.87kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: 5D002A2H / ECCN: 5D002ENCA3
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

Number of ports 100 Mbps ST -
-
Power over Ethernet -
UN
Number of ports PoE -
-
Max. PoE power -
- Watt
Number of ports 1000 Mbps POF -
-
Number of max. stackable switches -
0
Degree of protection (IP) -
IP30
Mounting method -
DIN rail (top hat rail)
Number of ports 1000 Mbps RJ45 -
0
Ethernet -
Number of ports 10/100 Mbps RJ45 -
20
Number of ports 1000 Mbps SC (SX) -
1
Number of ports 1000 Mbps SC (LX) -
2
Number of module slots -
0
Number of maximum stackable switches -
0
Number of ports 10/100 Mbps M12 -
0
Number of ports 10/100/1000 Mbps RJ45 -
0
Number of ports 1000 Mbps GBIC -
0
Number of ports 1000 Mbps Mini GBIC -
0
Number of combination-ports RJ45/Mini GBIC -
0
Layer 2 -
Number of other ports -
0
Number of ports 100/1000 Mbps Mini GBIC -
0
Number of ports 10 Gbps Mini GBIC -
0
Number of ports 100 Mbps POF -
0
Number of ports 10 Gbps RJ45 -
0
Number of ports 40 Gbps Mini GBIC -
0
Number of ports 100 Gbps Mini GBIC -
0
Degree of protection (IP rating) -
IP30
Depth -
123 Millimetre
Height -
125 Millimetre
Manageable -
Number of ports 100 Mbps SC -
1
Width -
180 Millimetre

Availability Back Order

£5,472.87
