6GK57862FC000AA0

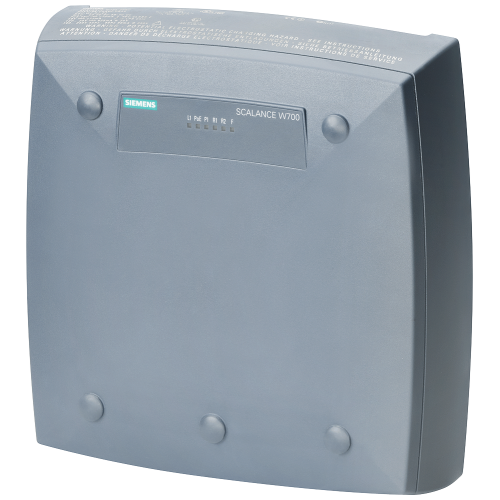

SCALANCE W786-2, IWLAN AP, 450 Mbit/s, 2xradio, 6xR-SMA, 24 V DC, 110-230 V AC

Manufacturer's No: 6GK5786-2FC00-0AA0     Manufacturer: Siemens
SCALANCE W786-2, IWLAN AP, 450 Mbit/s, 2xradio, 6xR-SMA, 24 V DC, 110-230 V AC

Availability On Request

POA

This product has been superseded by

6GK57631AL007DA0

Please check compatibility before purchasing.

  • IWLAN Access Point SCALANCE W786-2 RJ45
  • 2 radios with gross 450 Mbit/s per radio
  • 6 R-SMA antenna ports
  • Supports IEEE 802.11a/b/g/h/n at 2.4/5GHz
  • iFeatures support via key plug
  • 1x RJ45 port with max. 1 Gbit/s
  • Power over Ethernet (PoE) capability
  • Redundant power supply: 24 V DC terminal block, 110 - 230 V AC via PS791-2AC IP65
  • Operating temperature range: -40°C to +60°C
  • WPA2/802.11i/e security protocols

Read more

  • CERT ID: EAPN-W2-RJ-E3
  • Includes MPCIE-R1-ABGN-U3
  • Comes with manuals on CD-ROM in German/English
  • Designed for operation outside of USA/Israel

Accessories

Follow-up article



Product

Manufacturer Material ID -
6GK5786-2FC00-0AA0
Net Weight -
2.82kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: 5A002A1A2 / ECCN: 5A002ENCB1
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Radio protocol -
UN
Number of ports 1000 Mbps Mini GBIC -
-
Encoding -
UN
Number of AP's supported -
-
Wall mounting -
Degree of protection (IP) -
IP65
STATFLAG -
A
Colour -
Other
Connection for external antenna -
Number of ports 10 Gbps Mini GBIC -
0
Firewall throughput -
0 Gigabit per second
Bridge function -
Degree of protection (IP rating) -
IP65
Depth -
72 Millimetre
Ethernet -
Frequency band -
2.4 GHz and 5 GHz
Height -
251 Millimetre
Managed -
Max. data transmission rate -
450 Megabit per second
Number of ports 10/100 Mbps LAN -
1
Number of ports 10/100/1000 Mbps LAN -
1
Number of users -
8
Pole fastening -
Power over Ethernet -
Repeater function -
Suitable for wall mounting -
Width -
251 Millimetre

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

6GK57631AL007DA0

Please check compatibility before purchasing.
