6GK62973RD004AB0

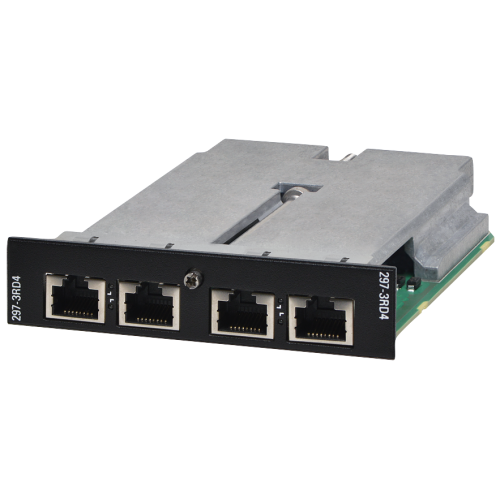

Media Module for RUGGEDCOM RST2228, 4 x RJ45, 10/100/1000 BASE-TX

Manufacturer's No: 6GK6297-3RD00-4AB0     Manufacturer: Siemens
Media Module for RUGGEDCOM RST2228, 4 x RJ45, 10/100/1000 BASE-TX

Availability On Request

POA
  • Media Module for RUGGEDCOM RST2228
  • 4 x RJ45 ports
  • Supports 10/100/1000 BASE-TX Ethernet connections


Product

Manufacturer Material ID -
6GK6297-3RD00-4AB0
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85177000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5A991X
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

Number of ports 10 Mbps BNC -
-
Number of ports 10 Mbps AUI -
-
Number of ports 10 Mbps of ST -
-
Number of ports 100 Mbps SC -
-
Number of ports 1000 Mbps SC -
-
Number of ports ISDN WAN -
-
Number of ports 100 Mbps MT RJ -
-
Number of ports 1000 Mbps of MT RJ -
-
Number of ports 10 Mbps RJ45 -
-
Number of ports 10/100 Mbps RJ45 -
-
Number of ports 10 Gbps LC (LX) -
-
Number of ports 10 Gbps LC (SX) -
-
Number of ports 10/100 Mbps M12 -
-
Number of ports 100/1000 Mbps RJ45 -
-
Number of ports 1000 Mbps LC (LX) -
-
Number of ports 1000 Mbps LC (SX) -
-
Number of combination-ports RJ45/Mini GBIC -
-
Number of ports 10 Gbps LC (SR) -
-
Number of ports 10 Gbps LC (LR) -
-
Wavelength -
- Millimetre

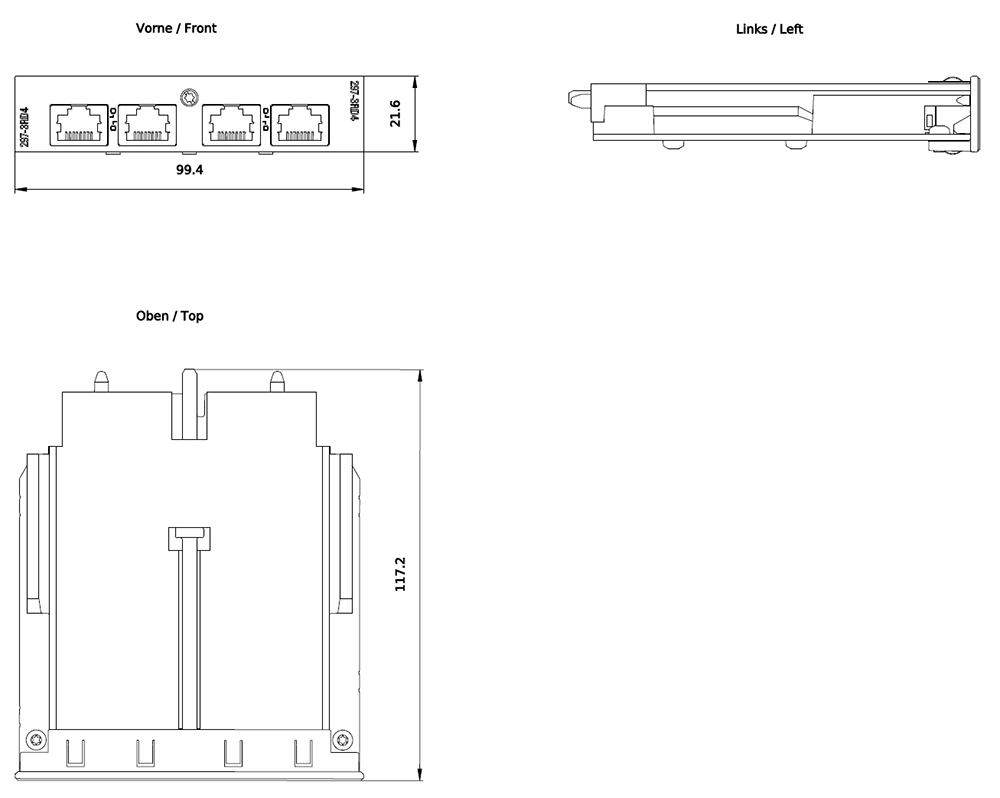

Width -
99.4 Millimetre
Height -
21.6 Millimetre
Depth -
120.1 Millimetre
Construction type -
Other
Number of ports 10/100/1000 Mbps RJ45 -
4
