6GK74431GX300XE0

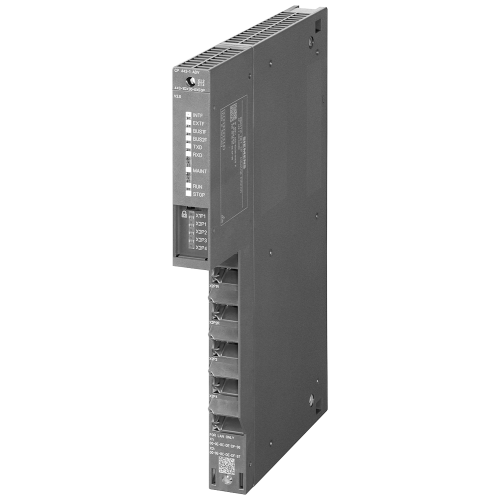

Communications processor CP 443-1 Advanced, connection SIMATIC S7-400 to IE

Manufacturer's No: 6GK7443-1GX30-0XE0     Manufacturer: Siemens
Communications processor CP 443-1 Advanced, connection SIMATIC S7-400 to IE

Availability Back Order

£3,789.00
  • Communications processor model: CP 443-1 Advanced
  • Ports: 1x 10/100/1000 Mbps, 4x 10/100 Mbps (IE switch) RJ45
  • Protocols supported: ISO, TCP, UDP, PROFINET IO controller, S7 communication
  • Features: Open communication (send/receive), S7 routing, IP configuration via DHCP/block, IP access control list, time-of-day synchronization
  • Additional features: Extended web diagnostics, Fast Startup, PROFIenergy support, IP routing, FTP, Web server, email
  • SIOS ID: 109799025


Product

Manufacturer Material ID -
6GK7443-1GX30-0XE0
Net Weight -
0.87kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Number of interfaces PROFINET -
4
Performance level acc. EN ISO 13849-1 -
None
Transmission rate -
1000000000 kiloBit/second
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Depth -
210 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
290 Millimetre
Number of HW-interfaces industrial Ethernet -
5
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
4
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Supporting protocol for other bus systems -
Supporting protocol for PROFINET CBA -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Type of data transmission -
Other
Width -
25 Millimetre

Availability Back Order

£3,789.00
