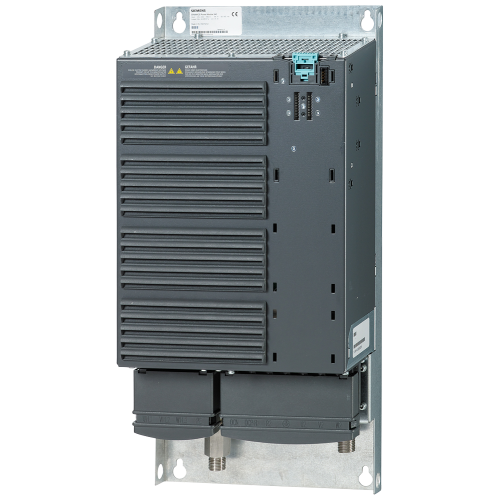

6SL32101SE310AA0

45kW / 90 A, PM340, Filtered, FSE

Manufacturer's No: 6SL3210-1SE31-0AA0     Manufacturer: Siemens
45kW / 90 A, PM340, Filtered, FSE

Availability On Request

POA
  • Power Output: 45 kW
  • Current: 90 A
  • Model: PM340
  • Input: 3-phase AC 380-480V, 50/60Hz
  • Output: 3-phase AC 90A (45 kW)
  • Frame Size: Blocksize FSE
  • Integrated Line Filter
  • Internal Air Cooling
Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3210-1SE31-0AA0
Net Weight -
27.64kg

Additional Product Information

Commodity Code -
85049099
Country of Origin -
DE
Export Control Regulations -
AL: 9I999 / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121705

Technical Specification

-
Siemens
Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Mains frequency -
UN
Number of interfaces PROFINET -
-
Type of converter -
UN
Number of phases output -
UN
Max. output frequency -
- Hertz
Max. output at quadratic load at rated output voltage -
- Kilowatt
Relative symmetric net voltage tolerance -
- Percentage
Relative symmetric net frequency tolerance -
- Percentage
Max. output voltage -
- Volt
Nominal output current I2N -
- Ampere
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Depth -
203.5 Millimetre
Height -
633 Millimetre
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
37 Kilowatt
Number of phases input -
3
Width -
275 Millimetre
