6SL32201YE600CF0

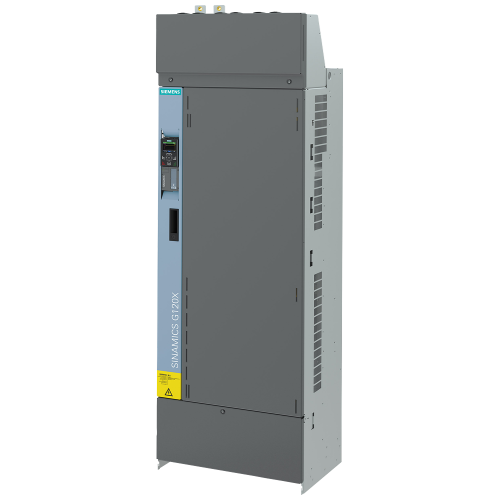

SINAMICS G120X - 400kW (720A), 380-480 V 3 AC, Size- FSH, IP20, without panel, PROFINET PN

Manufacturer's No: 6SL3220-1YE60-0CF0     Manufacturer: Siemens
SINAMICS G120X - 400kW (720A), 380-480 V 3 AC, Size- FSH, IP20, without panel, PROFINET PN

Availability Back Order

£22,197.25
  • Rated Power: 400 kW for 135% 3 seconds or 110% 60 seconds
  • EMC Filter for Category C3
  • Input: 3AC 380-480V +/- 10%, 47-63Hz
  • Ambient Temperature: 0 to +45 degrees Celsius
  • Frame Size: FSH
  • Protection: IP20/UL Open Type
  • Integrated Fieldbus: PROFINET-PN, Ethernet IP
  • Operator Panel and IO Expansion not included

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
6SL3220-1YE60-0CF0
Net Weight -
180.00kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 3A999A
RoHs Compliance -
Yes
UNSPSC -
32121705

Technical Specification

-
Siemens
Number of digital outputs -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
2
Degree of protection (IP rating) -
IP20
Mains frequency -
60 Hz
Application in industrial area permitted -
Depth -
393 Millimetre
Height -
1695 Millimetre
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
315 Kilowatt
Max. output at quadratic load at rated output voltage -
400 Kilowatt
Max. output frequency -
100 Hertz
Nominal output current I2N -
735 Ampere
Number of analogue inputs -
2
Number of analogue outputs -
1
Number of digital inputs -
6
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
6
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
5
Number of HW-interfaces USB -
0
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Supporting protocol for EtherNet/IP -
Supporting protocol for TCP/IP -
Type of converter -
U converter
Width -
548 Millimetre

Availability Back Order

£22,197.25
