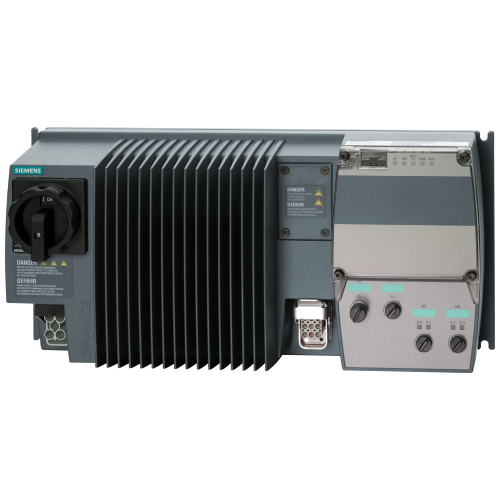

6SL35111PE175AM0

0.75kW / 2.3 A, G110D with isolation, FSA

Manufacturer's No: 6SL3511-1PE17-5AM0     Manufacturer: Siemens
0.75kW / 2.3 A, G110D with isolation, FSA

Availability Back Order

POA
  • Power: 0.75 kW
  • Current: 2.3 A
  • Model: SINAMICS G110D AC Drive
  • Features: Isolation, maintenance switch, integrated Class A filter, integrated braking chopper, AS-Interface bus interface
  • Input Voltage: 380-500 V 3AC +/-10%
  • Frequency: 47-63 Hz
  • High Overload Capacity: 0.75 kW at 200% for 3s, 150% for 60s
  • Ambient Temperature: -10 to +40°C
  • Dimensions: 210 x 450 x 145 mm (HxWxD)
  • Degree of Protection: IP65

Read more

  • Operator Panel: Not included


Product

Manufacturer Material ID -
6SL3511-1PE17-5AM0
Net Weight -
7.14kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
GB
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
32121705

Technical Specification

-
Siemens
Number of digital outputs -
-
Number of analogue outputs -
-
Max. output at quadratic load at rated output voltage -
- Kilowatt
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP65
Mains frequency -
50/60 Hz
Number of interfaces PROFINET -
0
4-quadrant operation possible -
Application in industrial area permitted -
Depth -
145 Millimetre
Height -
210 Millimetre
Integrated breaking resistance -
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
0.75 Kilowatt
Max. output frequency -
650 Hertz
Nominal output current I2N -
2.3 Ampere
Number of analogue inputs -
1
Number of digital inputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
1
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
10 Percentage
Supporting protocol for ASI -
Type of converter -
U converter
Width -
445 Millimetre
With optical interface -
With PC connection -
