6SL35440LB021FA0

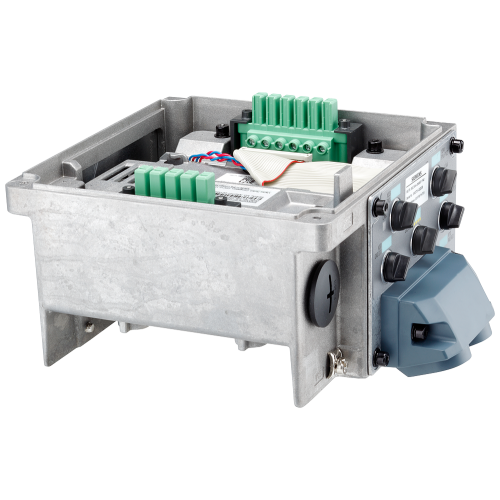

CU240M, 71, PN, Gland

Manufacturer's No: 6SL3544-0LB02-1FA0     Manufacturer: Siemens
CU240M, 71, PN, Gland

Availability On Request

POA
  • Control Unit: CU240M PN G PROFINET
  • Communication: PROFINET
  • Inputs: 4 DI, 2 AI, 1 F-DI
  • Outputs: 2 DO
  • Connection: M screw connection for PTC/KTY
  • EM brake control included
  • Degree of protection: IP66
  • Ambient temperature: -10 to +55°C
  • Dimensions: 105 x 171 x 205 mm (H x W x D)
  • Excludes Power Module


Product

Manufacturer Material ID -
6SL3544-0LB02-1FA0
Net Weight -
1.79kg

Additional Product Information

Commodity Code -
85049099
Country of Origin -
GB
Export Control Regulations -
AL: 9I999 / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

-
Siemens
Number of digital outputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Mains voltage -
- Volt
Mains frequency -
UN
Number of interfaces PROFINET -
-
Type of converter -
UN
Number of phases output -
UN
Number of phases input -
UN
Max. output frequency -
- Hertz
Max. output at linear load at rated output voltage -
- Kilowatt
Max. output at quadratic load at rated output voltage -
- Kilowatt
Relative symmetric net voltage tolerance -
- Percentage
Relative symmetric net frequency tolerance -
- Percentage
Max. output voltage -
- Volt
Nominal output current I2N -
- Ampere
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP66
Degree of protection (IP rating) -
IP66
Depth -
171 Millimetre
Height -
105 Millimetre
Number of analogue inputs -
2
Number of digital inputs -
4
Width -
205 Millimetre

Availability On Request

POA
