6AG11316FD017BB1

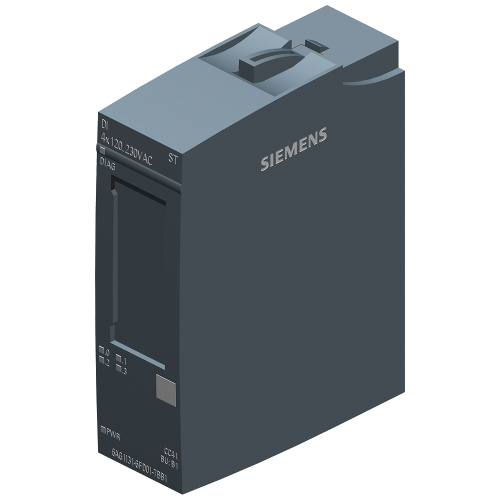

SIPLUS ET 200SP DI 4x120 ... 230 V AC ST -40 ... +70 °C with conformal coating based on 6ES7131-6FD01-0BB1

Manufacturer's No: 6AG1131-6FD01-7BB1     Manufacturer: Siemens
SIPLUS ET 200SP DI 4x120 ... 230 V AC ST -40 ... +70 °C with conformal coating based on 6ES7131-6FD01-0BB1

Availability On Request

£141.00
  • Input Voltage: 120-230 V AC
  • Operating Temperature: -40 to +70 °C
  • Digital Input Module
  • Conformal Coating for Protection
  • Suitable for BU Type B1
  • Module Diagnostics Included
  • Model: SIPLUS ET 200SP DI
  • Part Number: 6ES7131-6FD01-0BB1
  • Color Code: CC41

Mandatory additional product

Product video
Product video


Product

Manufacturer Material ID -
6AG1131-6FD01-7BB1
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Output current -
- Ampere
Type of electric connection -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Degree of protection (IP) -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
1.5 Millisecond
Type of voltage (input voltage) -
AC
Number of interfaces PROFINET -
0
Front build in possible -
Degree of protection (IP rating) -
IP20
Depth -
58 Millimetre
Digital inputs configurable -
Fieldbus connection over separate bus coupler possible -
Height -
73 Millimetre
Input current at signal 1 -
10.8 Milliampere
Number of digital inputs -
4
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Permitted voltage at input -
0 Volt
Rail mounting possible -
Supply voltage AC 50 Hz -
187 Volt
Supply voltage AC 60 Hz -
187 Volt
System accessory -
Time delay at signal change -
1.5 Millisecond
Type of digital output -
None
Voltage type of supply voltage -
AC
Width -
20 Millimetre

Availability On Request

£141.00
