6AG11344JB517AB0

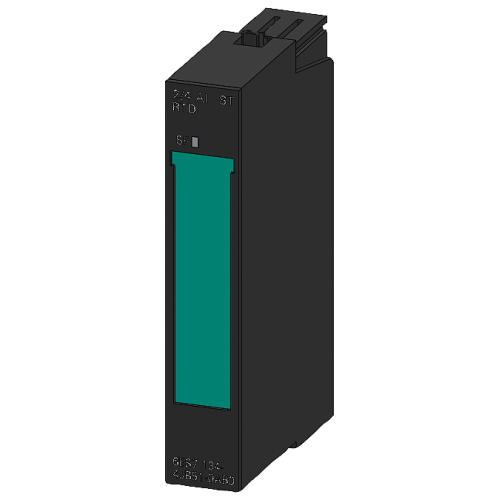

SIPLUS ET 200S EM 2AI RTD -25...+70 °C with conformal coating based on 6ES7134-4JB51-0AB0

Manufacturer's No: 6AG1134-4JB51-7AB0     Manufacturer: Siemens
SIPLUS ET 200S EM 2AI RTD -25...+70 °C with conformal coating based on 6ES7134-4JB51-0AB0

Availability On Request

POA
  • SIPLUS ET 200S EM 2AI RTD
  • Temperature range: -25°C to +70°C
  • Conformal coating for protection
  • Model: 6ES7134-4JB51-0AB0

Accessories



Product

Manufacturer Material ID -
6AG1134-4JB51-7AB0
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Resolution of the analogue outputs -
- Bit
Explosion safety category for gas -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for dust -
None
Analogue inputs configurable -
Degree of protection (IP rating) -
IP20
Depth -
52 Millimetre
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
81 Millimetre
Input signal, configurable -
Input, resistance thermometer -
Input, resistor -
Number of analogue inputs -
4
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Resolution of the analogue inputs -
16 Bit
Supply voltage DC -
20.4 Volt
System accessory -
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
15 Millimetre
-
- SIPLUS ET 200S EM 2AI RTD - Temperature range: -25°C to +70°C - Conformal coating for protection - Model: 6ES7134-4JB51-0AB0 Millimetre
