6AG11354GB012AB0

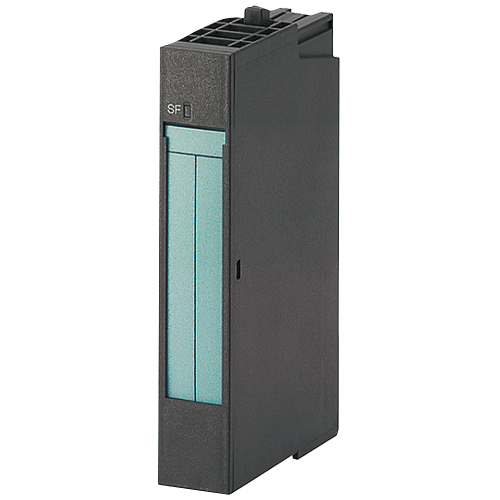

SIPLUS ET 200S EM 2AO I Standard -25...+70 °C with conformal coating based on 6ES7135-4GB01-0AB0 .

Manufacturer's No: 6AG1135-4GB01-2AB0     Manufacturer: Siemens
SIPLUS ET 200S EM 2AO I Standard -25...+70 °C with conformal coating based on 6ES7135-4GB01-0AB0 .

Availability Available to order

POA
  • SIPLUS ET 200S EM 2AO I Standard
  • Temperature range: -25 to +70°C
  • Conformal coating based on 6ES7135-4GB01-0AB0
  • Output: +/-20 mA
  • Resolution: 13 bit + sign
  • Output range: 4-20mA
  • Cycle time: <1 ms
  • SF LED for group fault detection

Accessories



Product

Manufacturer Material ID -
6AG1135-4GB01-2AB0
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Resolution of the analogue inputs -
- Bit
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Type of electric connection -
Screw-/spring clamp connection
Analogue outputs configurable -
Degree of protection (IP rating) -
IP20
Depth -
52 Millimetre
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
81 Millimetre
Number of analogue inputs -
0
Number of analogue outputs -
2
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output signal configurable -
Output, current -
Rail mounting possible -
Resolution of the analogue outputs -
14 Bit
Supply voltage DC -
20.4 Volt
System accessory -
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
15 Millimetre
-
- SIPLUS ET 200S EM 2AO I Standard - Temperature range: -25 to +70°C - Conformal coating based on 6ES7135-4GB01-0AB0 - Output: +/-20 mA - Resolution: 13 bit + sign - Output range: 4-20mA - Cycle time: <1 ms - SF LED for group fault detection Millimetre
