6AG11356HB007CA1

SIPLUS ET 200SP AQ 2xU/I HF

Manufacturer's No: 6AG1135-6HB00-7CA1     Manufacturer: Siemens

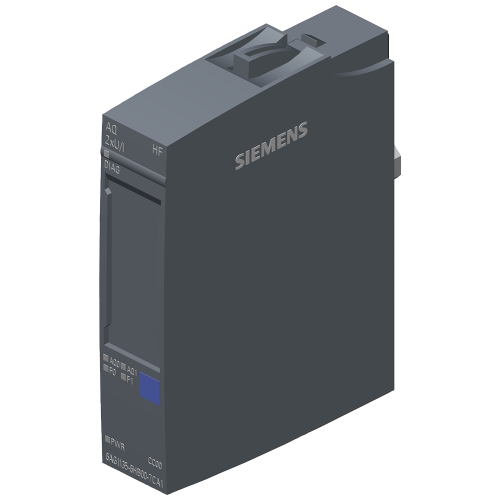

SIPLUS ET 200SP AQ 2xU/I HF

View 3D

Availability Back Order

£400.00
  • SIPLUS ET 200SP AQ 2xU/I HF analog output module
  • Model: 6ES7135-6HB00-0CA1
  • Conformal coating for protection
  • Operating temperature: -40°C to +70°C
  • Suitable for BU type A0, A1
  • Color code: CC00
  • 16-bit resolution
  • Accuracy: +/-0.1%
Product video
Product video


Product

Manufacturer Material ID -
6AG1135-6HB00-7CA1
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
32151705

Technical Specification

Resolution of the analogue inputs -
- Bit
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Type of electric connection -
Plug-in connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Analogue outputs configurable -
Degree of protection (IP rating) -
IP20
Depth -
58 Millimetre
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
73 Millimetre
Number of analogue inputs -
0
Number of analogue outputs -
2
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output signal configurable -
Output, current -
Output, voltage -
Rack-assembly possible -
Rail mounting possible -
Resolution of the analogue outputs -
16 Bit
Supply voltage DC -
19.2 Volt
System accessory -
Voltage type of supply voltage -
DC
Width -
15 Millimetre

Availability Back Order

£400.00
Sign in or Register for customer prices.
