6AG11555AA017AB0

SIPLUS ET 200MP IM 155-5 PN ST -40°C to +70°C with conformal coating based on 6ES7155-5AA01-0AB0 . PROFINET IO device Inte

Manufacturer's No: 6AG1155-5AA01-7AB0     Manufacturer: Siemens

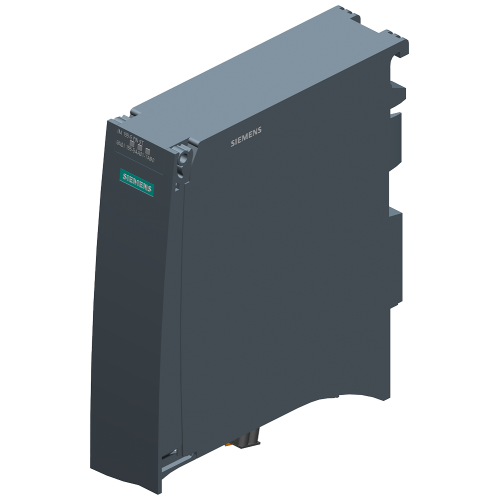

SIPLUS ET 200MP IM 155-5 PN ST -40°C to +70°C with conformal coating based on 6ES7155-5AA01-0AB0 . PROFINET IO device Interface module IM 155-5 PN ST for ET 200MP "electronic modules; up to 12 IO" m

View 3D

Availability Back Order

£1,002.00
  • Model: SIPLUS ET 200MP IM155-5 PN ST
  • Part Number: 6ES7155-5AA01-0AB0
  • Temperature Range: -40°C to +70°C
  • Interface: PROFINET IO
  • Compatibility: ET 200MP electronic modules
  • IO Module Capacity: Up to 12 modules without additional power supply, up to 30 modules with additional power supply
  • Features: Conformal coating, integrated 2-port switch, RJ45 shared device, MRP, IRT >=0.25 ms, isochronous mode FW update, I&M0...3
  • Update Time: 500 ms

Mandatory additional product

Spare part

Product video
Product video


Product

Manufacturer Material ID -
6AG1155-5AA01-7AB0
Net Weight -
0.31kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP20
Front build in possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP20
Depth -
129 Millimetre
Height -
147 Millimetre
Rail mounting possible -
Supply voltage DC -
19.2 Volt
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
System accessory -
Voltage type of supply voltage -
DC
Width -
35 Millimetre
With potential separation -

Availability Back Order

£1,002.00
