6AG12071BQ407AA3

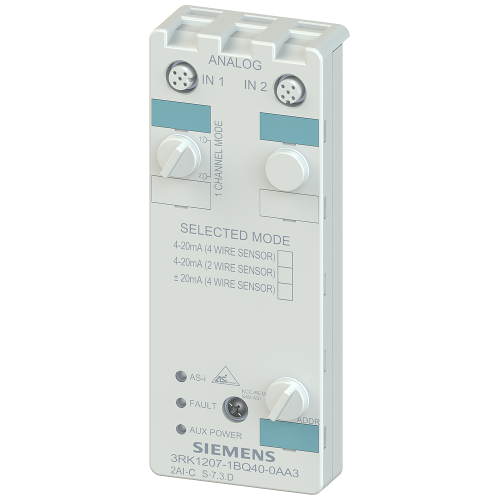

AS-I compact module, IP67 analog, number format S7 2x input (M12), 4-20 mA with coating

Manufacturer's No: 6AG1207-1BQ40-7AA3     Manufacturer: Siemens
AS-I compact module, IP67 analog, number format S7 2x input (M12), 4-20 mA with coating

Availability On Request

POA
  • AS-I compact module
  • IP67 analog
  • Number format S7
  • 2x input (M12)
  • 4-20 mA with coating
  • SIPLUS AS-Interface 2AI IP67
  • Operating temperature: -25°C to +70°C
  • Conformal coating
  • Active channels 1 and 2
  • No smoothing filter

Read more

  • Mounting plate 3RK1901-0CA00 (must be ordered separately)
  • Profile 7.3


Product

Manufacturer Material ID -
6AG1207-1BQ40-7AA3
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Voltage type of supply voltage -
UN
Number of HW-interfaces USB -
-
Explosion safety category for gas -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Resolution of the analogue outputs -
16 Bit
Type of electric connection -
Screw connection
Degree of protection (IP) -
IP67
Number of interfaces PROFINET -
0
Analogue inputs configurable -
Degree of protection (IP rating) -
IP67
Depth -
29 Millimetre
Explosion safety category for dust -
None
Height -
152 Millimetre
Input signal, configurable -
Input, current -
Number of analogue inputs -
2
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces Wireless -
0
Resolution of the analogue inputs -
16 Bit
Supporting protocol for ASI -
System accessory -
Width -
60 Millimetre

Availability On Request

POA
