6AG12101PE142UL1

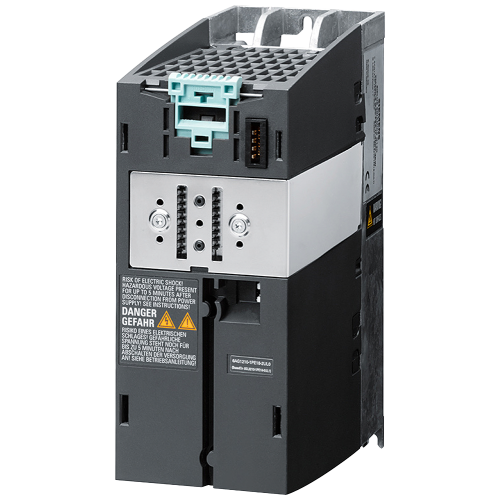

SIPLUS G120 PM240-2 FSA 1.5 kW -20 ... +50 °C with conformal coating based on 6SL3210-1PE14-3UL1

Manufacturer's No: 6AG1210-1PE14-2UL1     Manufacturer: Siemens
SIPLUS G120 PM240-2 FSA 1.5 kW -20 ... +50 °C with conformal coating based on 6SL3210-1PE14-3UL1

Availability On Request

£952.00
  • SIPLUS G120 PM240-2 IP20-FSA-U-400V 1.5 kW
  • Based on 6SL3210-1PE14-3UL1 with conformal coating
  • Temperature range: -20°C to +50°C
  • Unfiltered with integrated braking chopper
  • Input: 380-480 V 3 AC +/-10% 47-63 Hz
  • High overload power: 1.1 kW at 200% for 3 s, 150% for 57 s, 100% for 240 s
  • Low overload power: 1.5 kW at 150% for 3 s, 110% for 57 s, 100% for 240 s
  • Dimensions: 196 x 73 x 165 mm (H x W x D)
  • Design: FSA, IP20 protection
  • Does not include CU and operating unit

Read more

  • Released with CU FW version V4.7 HF8
Product video
Product video


Product

Manufacturer Material ID -
6AG1210-1PE14-2UL1
Net Weight -
1.62kg

Additional Product Information

Commodity Code -
85044084
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
32121704

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Number of interfaces PROFINET -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Mains frequency -
50/60 Hz
Degree of protection (IP rating) -
IP20
Depth -
165 Millimetre
Height -
196 Millimetre
Integrated breaking resistance -
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
1.1 Kilowatt
Max. output at quadratic load at rated output voltage -
1.5 Kilowatt
Max. output frequency -
650 Hertz
Nominal output current I2N -
4.1 Ampere
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
10 Percentage
Type of converter -
U converter
Width -
73 Millimetre

Availability On Request

£952.00
Sign in or Register for customer prices.

Additional Information
