6AG12101PE282AL0

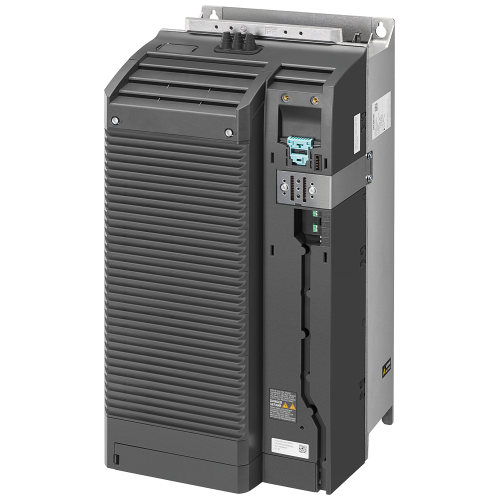

SIPLUS G120 PM240-2 FSE 45 kW -20 ... +50 °C with Conformal Coating based on 6SL3210-1PE28-8AL0

Manufacturer's No: 6AG1210-1PE28-2AL0     Manufacturer: Siemens
SIPLUS G120 PM240-2 FSE 45 kW -20 ... +50 °C with Conformal Coating based on 6SL3210-1PE28-8AL0

Availability On Request

£10,939.00
  • SIPLUS G120 PM240-2 IP20-FSE-A-400V 45 kW
  • Based on 6SL3210-1PE28-8AL0 with conformal coating
  • Temperature range: -20 to +50 °C
  • Integrated class A filter and braking chopper
  • Voltage: 380-480 V, 3 AC, ±10/-20%, 47-63 Hz
  • High overload power: 37 kW at 200% for 3 s, 150% for 57 s, 100% for 240 s
  • Low overload power: 45 kW at 150% for 3 s, 110% for 57 s, 100% for 240 s
  • Dimensions: 551 x 275 x 237 mm (H x W x D)
  • FSE design, IP20 protection rating
  • Does not include CU and operating unit

Read more

  • Released with CU FW version V4.7 HF8
Product video
Product video


Product

Manufacturer Material ID -
6AG1210-1PE28-2AL0
Net Weight -
28.38kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
32121705

Technical Specification

Number of digital inputs -
-
Number of digital outputs -
-
Number of analogue inputs -
-
Number of analogue outputs -
-
Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-232 -
-
Number of HW-interfaces RS-422 -
-
Number of HW-interfaces RS-485 -
-
Number of HW-interfaces serial TTY -
-
Number of HW-interfaces USB -
-
Number of HW-interfaces parallel -
-
Number of HW-interfaces other -
-
Number of interfaces PROFINET -
-
Max. output voltage -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Mains frequency -
50/60 Hz
Application in industrial area permitted -
Degree of protection (IP rating) -
IP20
Depth -
237 Millimetre
Height -
551 Millimetre
Integrated breaking resistance -
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
37 Kilowatt
Max. output at quadratic load at rated output voltage -
45 Kilowatt
Max. output frequency -
550 Hertz
Nominal output current I2N -
90 Ampere
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
5 Percentage
Relative symmetric net voltage tolerance -
10 Percentage
Type of converter -
U converter
Width -
275 Millimetre

Availability On Request

£10,939.00
Sign in or Register for customer prices.

Additional Information
