6AG12141BG405XB0

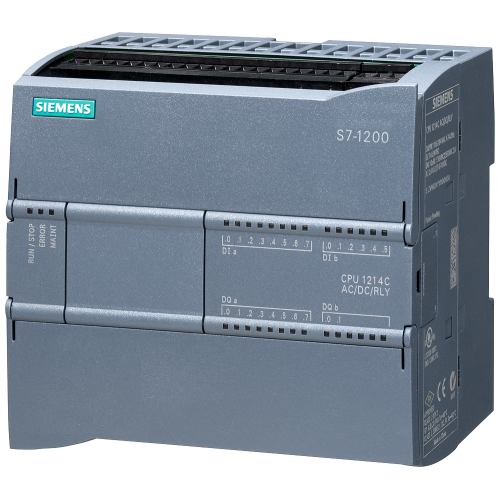

SIPLUS S7-1200 CPU 1214C AC/DC/relay -25 ... +55 °C with conformal coating based on 6ES7214-1BG40-0XB0

Manufacturer's No: 6AG1214-1BG40-5XB0     Manufacturer: Siemens
SIPLUS S7-1200 CPU 1214C AC/DC/relay -25 ... +55 °C with conformal coating based on 6ES7214-1BG40-0XB0

View 3D

Availability Back Order

£828.00
  • Model: SIPLUS S7-1200 CPU 1214C AC/DC/relay
  • Part Number: 6ES7214-1BG40-0XB0
  • Operating Temperature: -40°C to +60°C (start up at -25°C)
  • Conformal coating for protection
  • Compact CPU design
  • Onboard I/O:
    • 14 Digital Inputs: 24V DC
    • 10 Digital Outputs: Relay, 2A
    • 2 Analog Inputs: 0-10V DC
  • 14 Digital Inputs: 24V DC
  • 10 Digital Outputs: Relay, 2A
  • 2 Analog Inputs: 0-10V DC
  • Power Supply: AC 85-264V AC @ 47-63 Hz

Read more

  • Program/Data Memory: 100 KB
Product video
Product video


Product

Manufacturer Material ID -
6AG1214-1BG40-5XB0
Net Weight -
0.49kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage DC -
- Volt
SIL according to IEC 61508 -
UN
Number of interfaces PROFINET -
1
Front build in possible -
Depth -
75 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height -
100 Millimetre
Memory size -
100 kiloByte (1000 Byte)
Model -
Compact
Number of analogue inputs -
2
Number of analogue outputs -
0
Number of digital inputs -
14
Number of digital outputs -
10
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
10
Processing time (1K, binary operation) -
0.085 Millisecond
Rail mounting possible -
Supply voltage AC 50 Hz -
85 Volt
Supply voltage AC 60 Hz -
85 Volt
Supporting protocol for ASI -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Type of memory -
RAM
Voltage type of supply voltage -
AC
Wall mounting/direct mounting -
Width -
110 Millimetre
