6AG13135BG047AB0

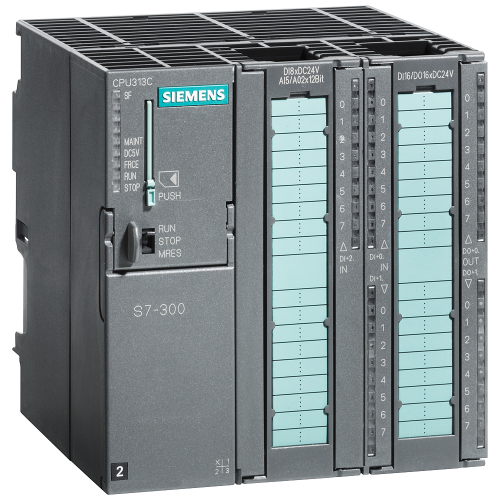

SIPLUS S7-300 CPU 313C for medial exposure -25...+70 °C based on 6ES7313-5BG04-0AB0 . Compact CPU w

Manufacturer's No: 6AG1313-5BG04-7AB0     Manufacturer: Siemens
SIPLUS S7-300 CPU 313C for medial exposure -25...+70 °C based on 6ES7313-5BG04-0AB0 . Compact CPU w

Availability On Request

POA
  • Model: SIPLUS S7-300 CPU 313C (6ES7313-5BG04-0AB0)
  • Temperature range: -25°C to +70°C with conformal coating
  • Compact CPU with MPI communication
  • Inputs: 24 digital inputs, 4 analog inputs, 1 Pt100 input
  • Outputs: 16 digital outputs, 2 analog outputs
  • High-speed counters: 3 counters with 30 kHz frequency
  • Integrated 24 V DC power supply
  • Work memory: 128 KB
  • Front connector: 2x 40-pole
  • Micro Memory Card required

Accessories



Product

Manufacturer Material ID -
6AG1313-5BG04-7AB0
Net Weight -
0.77kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Number of interfaces PROFINET -
0
Depth -
130 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height -
125 Millimetre
Memory size -
128 kiloByte (1000 Byte)
Model -
Compact
Number of analogue inputs -
4
Number of analogue outputs -
2
Number of digital inputs -
24
Number of digital outputs -
16
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.07 Millisecond
Rail mounting possible -
Redundancy -
Supply voltage DC -
19.2 Volt
Supporting protocol for other bus systems -
System accessory -
Type of memory -
RAM
Voltage type of supply voltage -
DC
Width -
120 Millimetre
