6AG13146CH047AB0

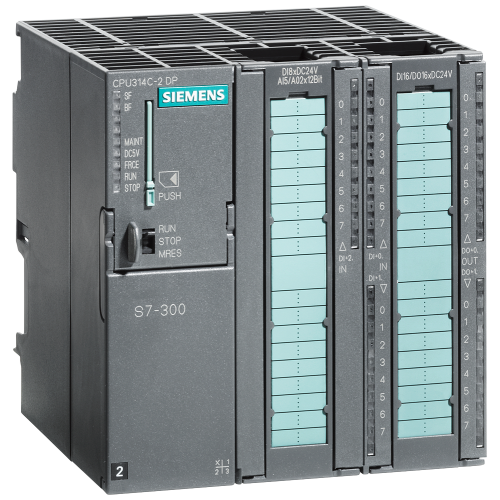

SIPLUS S7-300 CPU 314C-2DP for medial exposure -25...+70 °C based on 6ES7314-6CH04-0AB0 . Compact C

Manufacturer's No: 6AG1314-6CH04-7AB0     Manufacturer: Siemens
SIPLUS S7-300 CPU 314C-2DP for medial exposure -25...+70 °C based on 6ES7314-6CH04-0AB0 . Compact C

Availability On Request

POA
  • Model: SIPLUS S7-300 CPU 314C-2DP (6ES7314-6CH04-0AB0)
  • Temperature range: -25°C to +70°C
  • Compact CPU with MPI
  • Inputs: 24 DI, 4 AI, 1 Pt100
  • Outputs: 16 DQ, 2 AQ
  • High-speed counters: 4 (60 kHz)
  • Integrated DP interface
  • Integrated power supply: 24 V DC
  • Work memory: 192 KB
  • Front connector: 2x 40-pole

Read more

  • Conformal coating for protection
  • Micro Memory Card required

Accessories



Product

Manufacturer Material ID -
6AG1314-6CH04-7AB0
Net Weight -
0.77kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
43201503

Technical Specification

Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Number of interfaces PROFINET -
0
Depth -
130 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height -
125 Millimetre
Memory size -
192 kiloByte (1000 Byte)
Model -
Compact
Number of analogue inputs -
5
Number of analogue outputs -
2
Number of digital inputs -
24
Number of digital outputs -
16
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
2
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.06 Millisecond
Rail mounting possible -
Redundancy -
Supply voltage DC -
19.2 Volt
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
System accessory -
Type of memory -
RAM
Voltage type of supply voltage -
DC
Width -
120 Millimetre
