6AG13146EH047AB0

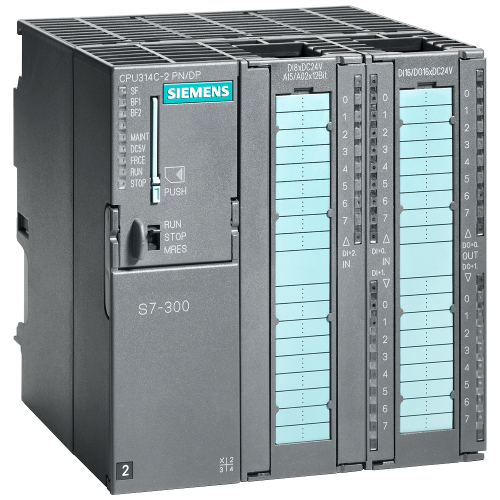

SIPLUS S7-300 CPU 314C-2PN/DP with conformal coating -25...+70 °C based on 6ES7314-6EH04-0AB0 . Com

Manufacturer's No: 6AG1314-6EH04-7AB0     Manufacturer: Siemens
SIPLUS S7-300 CPU 314C-2PN/DP with conformal coating -25...+70 °C based on 6ES7314-6EH04-0AB0 . Com

Availability On Request

POA
  • SIPLUS S7-300 CPU 314C-2PN/DP (6ES7314-6EH04-0AB0)
  • Conformal coating for harsh environments (-25°C to +70°C)
  • Compact CPU with 192 KB work memory
  • 24 digital inputs / 16 digital outputs
  • 4 analog inputs / 2 analog outputs / 1 Pt100 input
  • 4 high-speed counters (60 kHz)
  • 1st interface: MPI/DP at 12 Mbps
  • 2nd interface: Ethernet PROFINET with 2-port switch
  • Integrated power supply at 24 V DC
  • Front connector with 2x 40-pole configuration

Read more

  • Micro Memory Card required

Accessories



Product

Manufacturer Material ID -
6AG1314-6EH04-7AB0
Net Weight -
0.80kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of interfaces PROFINET -
1
SIL according to IEC 61508 -
None
Depth -
130 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height -
125 Millimetre
Memory size -
192 kiloByte (1000 Byte)
Model -
Compact
Number of analogue inputs -
5
Number of analogue outputs -
2
Number of digital inputs -
24
Number of digital outputs -
16
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.06 Millisecond
Rail mounting possible -
Redundancy -
Supply voltage DC -
19.2 Volt
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET CBA -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Type of memory -
RAM
Voltage type of supply voltage -
DC
Width -
120 Millimetre
