6AG13152EH147AB0

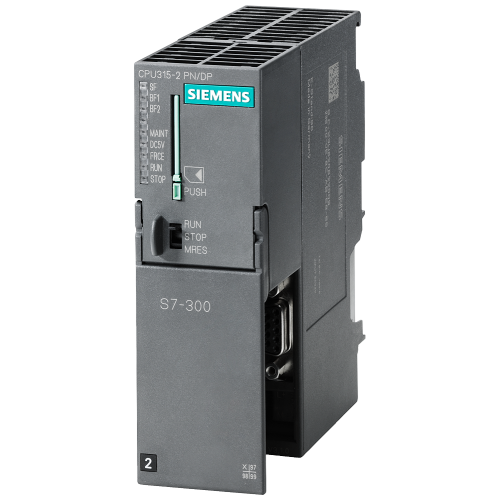

SIPLUS S7-300 CPU315-2PN/DP -25 ... +70 DEGREES C WITH CONFORMAL COATING BASED ON 6ES7315-2EH14-0AB0

Manufacturer's No: 6AG1315-2EH14-7AB0     Manufacturer: Siemens
SIPLUS S7-300 CPU315-2PN/DP -25 ... +70 DEGREES C WITH CONFORMAL COATING BASED ON 6ES7315-2EH14-0AB0

View 3D

Availability Back Order

£4,167.00
  • Model: SIPLUS S7-300 CPU 315-2PN/DP (6ES7315-2EH14-0AB0)
  • Temperature Range: -25°C to +70°C
  • Work Memory: 384 KB
  • Interfaces:
    • 1st Interface: MPI/DP at 12 Mbps
    • 2nd Interface: Ethernet PROFINET with 2-port switch
  • Additional Requirement: Micro Memory Card

Accessories



Product

Manufacturer Material ID -
6AG1315-2EH14-7AB0
Net Weight -
0.40kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Number of interfaces PROFINET -
1
Depth -
130 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height -
125 Millimetre
Memory size -
384 kiloByte (1000 Byte)
Model -
Modular
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
0
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.05 Millisecond
Rail mounting possible -
Redundancy -
Supply voltage DC -
20.4 Volt
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET CBA -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Type of memory -
RAM
Voltage type of supply voltage -
DC
Width -
40 Millimetre
