6AG13176FF042AB0

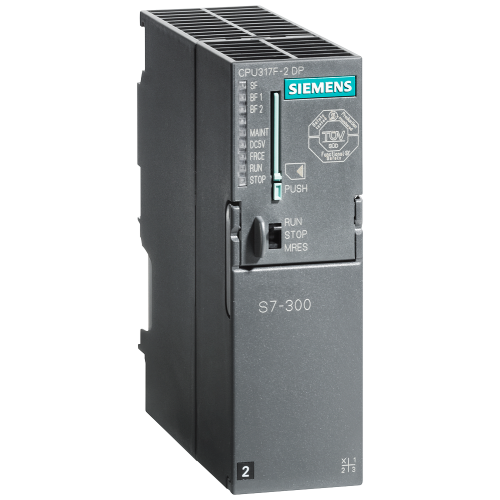

SIPLUS S7-300 CPU 317F-2DP -25...+60 °C with conformal coating Based on 6ES7317-6FF04-0AB0 . Centra

Manufacturer's No: 6AG1317-6FF04-2AB0     Manufacturer: Siemens
SIPLUS S7-300 CPU 317F-2DP -25...+60 °C with conformal coating Based on 6ES7317-6FF04-0AB0 . Centra

Availability On Request

POA
  • Model: SIPLUS S7-300 CPU 317F-2DP (6ES7317-6FF04-0AB0)
  • Conformal coating for harsh environments (-25°C to +60°C)
  • Central processing unit with 1.5 MB work memory
  • 1st interface: MPI/DP 12 Mbps
  • 2nd interface: DP master/slave
  • Requires Micro Memory Card
  • Compatible with software package S7 Distributed Safety V5.2 SP1 or higher

Accessories



Product

Manufacturer Material ID -
6AG1317-6FF04-2AB0
Net Weight -
0.42kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
43201503

Technical Specification

Category according to EN 954-1 -
UN
Max. number of time switches -
-
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of interfaces PROFINET -
0
Front build in possible -
Performance level acc. EN ISO 13849-1 -
Level e
Performance level acc. to EN ISO 13849-1 -
Level e
Depth -
130 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height -
125 Millimetre
Memory size -
1536 kiloByte (1000 Byte)
Model -
Modular
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
0
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
2
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.025 Millisecond
Rail mounting possible -
Redundancy -
SIL according to IEC 61508 -
3
Suitable for safety functions -
Supply voltage DC -
19.2 Volt
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
System accessory -
Type of memory -
RAM
Voltage type of supply voltage -
DC
Width -
40 Millimetre
