6AG13231BH012AA0

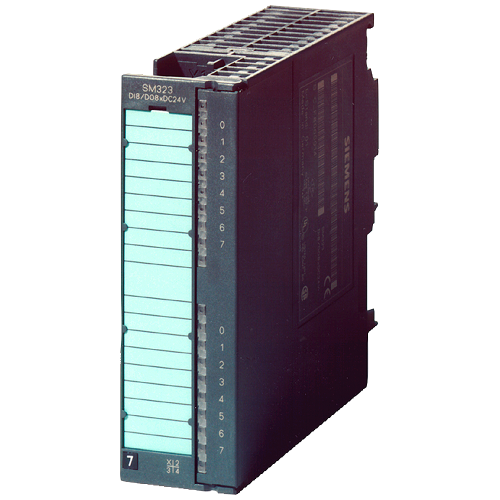

SIPLUS S7-300 SM 323-20-pole -40...+70 °C with conformal coating Conformity with EN 50155 T1 Kat 1

Manufacturer's No: 6AG1323-1BH01-2AA0     Manufacturer: Siemens
SIPLUS S7-300 SM 323-20-pole -40...+70 °C with conformal coating Conformity with EN 50155 T1 Kat 1

Availability On Request

POA
  • SIPLUS S7-300 SM 323-20-pole digital module
  • Based on 6ES7323-1BH01-0AA0
  • Conformal coating for protection
  • Operating temperature: -40°C to +70°C
  • Isolated 8 digital inputs and 8 digital outputs
  • Voltage: 24 V DC
  • Total current: 0.5 A (2 A peak)

Accessories



Product

Manufacturer Material ID -
6AG1323-1BH01-2AA0
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
1.2 Millisecond
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Depth -
120 Millimetre
Digital inputs configurable -
Digital outputs configurable -
Explosion safety category for dust -
None
Height -
125 Millimetre
Input current at signal 1 -
7 Milliampere
Number of digital inputs -
8
Number of digital outputs -
8
Output current -
0.5 Ampere
Permitted voltage at input -
-30 Volt
Permitted voltage at output -
0 Volt
Redundancy -
Short-circuit protection, outputs available -
Supply voltage DC -
20.4 Volt
Time delay at signal change -
1.2 Millisecond
Type of digital output -
Transistor
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
40 Millimetre

Availability On Request

POA
